CY
CY Series Safety Certified Disc Ceramic Capacitors (Class X1/Y1)
- Safety class
- X1 / Y1 (IEC 60384-14)
- Rated voltage
- X1 760 VAC · Y1 500 VAC · 1,500 VDC (Y5U/Y5V)
- Capacitance
- 100–10,000 pF
Product finder
Pick a product type, then narrow the series by rated voltage, capacitance, resistance and other key ratings.
SMD series and PTC thermistors: part numbers and datasheets on request. SMD components PTC thermistors
Product typeAll 45Safety ceramic (X/Y) 5Medium/high-voltage ceramic 1Film capacitors 24Varistors 6NTC inrush limiters 2NTC sensing 7
45 series
No series meets all of these ratings. Relax one of them, look up a part number with AI cross reference, or ask the AI Assistant.
Safety ceramic capacitors (X/Y)
5
CD
CD Series Safety Certified Disc Ceramic Capacitors (Class X1/Y1)
- Safety class
- X1 / Y1 (IEC 60384-14)
- Rated voltage
- Up to 500 VAC · 1,500 VDC (Y5P/Y5U/Y5V)
- Capacitance
- 10–4,700 pF

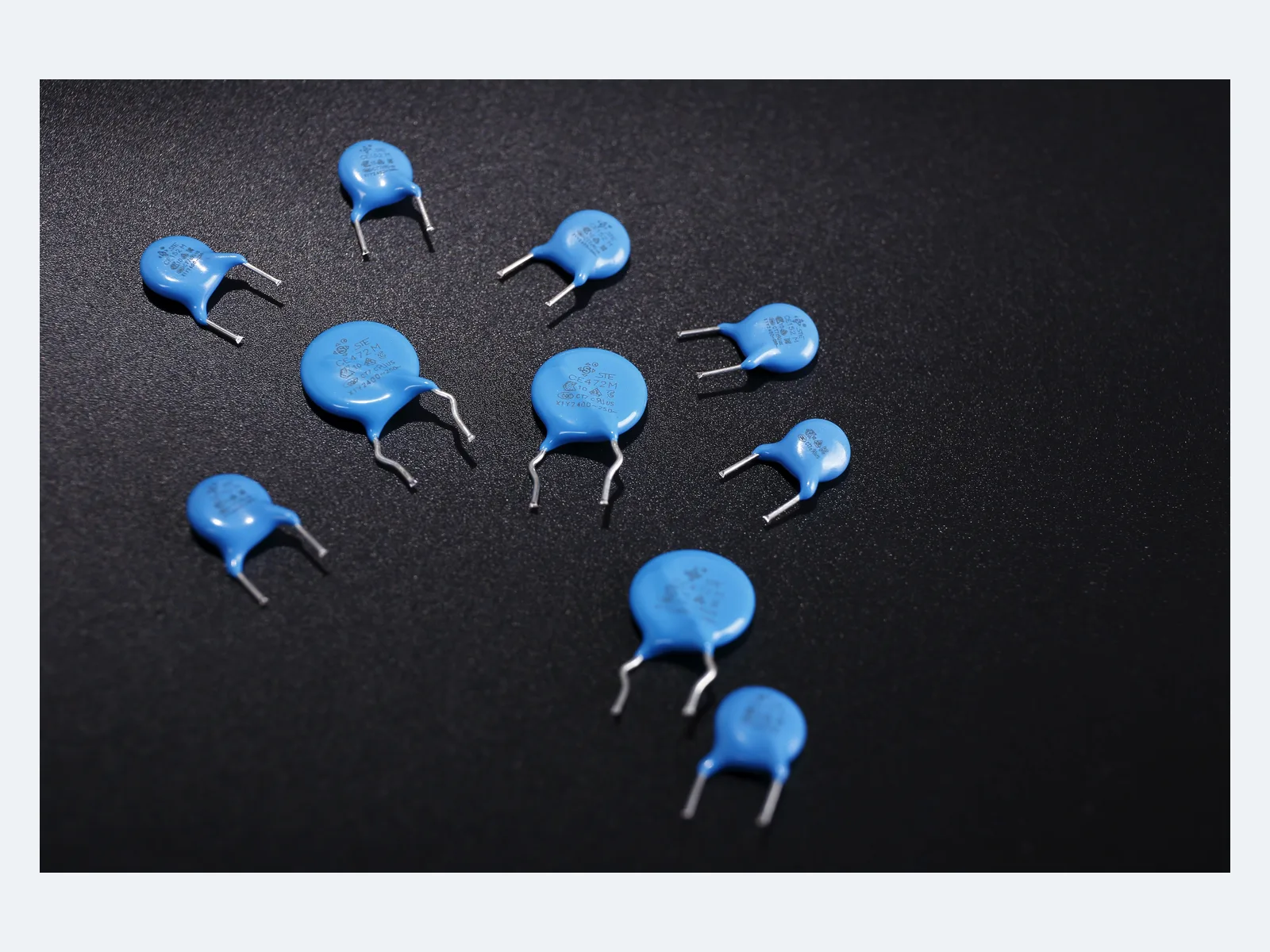

CE
CE Series Safety Certified Disc Ceramic Capacitors (Class X1/Y2)
- Safety class
- X1 / Y2 (IEC 60384-14)
- Rated voltage
- X1 440 VAC · Y2 300 VAC · 1,500 VDC (Annex H)
- Capacitance
- 100–10,000 pF

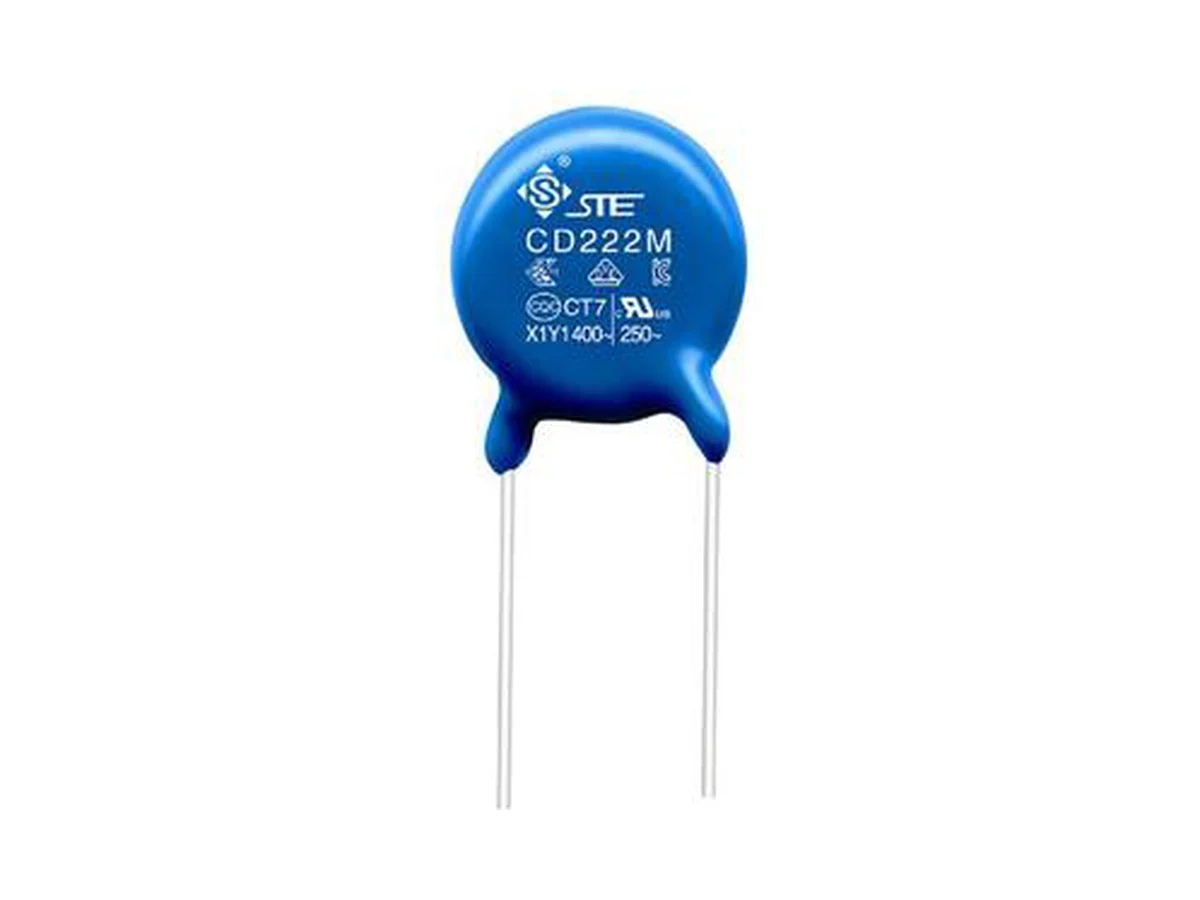

CY-AAEC-Q200
Automotive CY Series Safety Certified Ceramic Capacitors (Class X1/Y1, AEC-Q200)
- Safety class
- X1 760 VAC / Y1 500 VAC (IEC 60384-14)
- Capacitance
- Y5P 100–2,200 pF · Y5U 330–4,700 pF
CE-AAEC-Q200

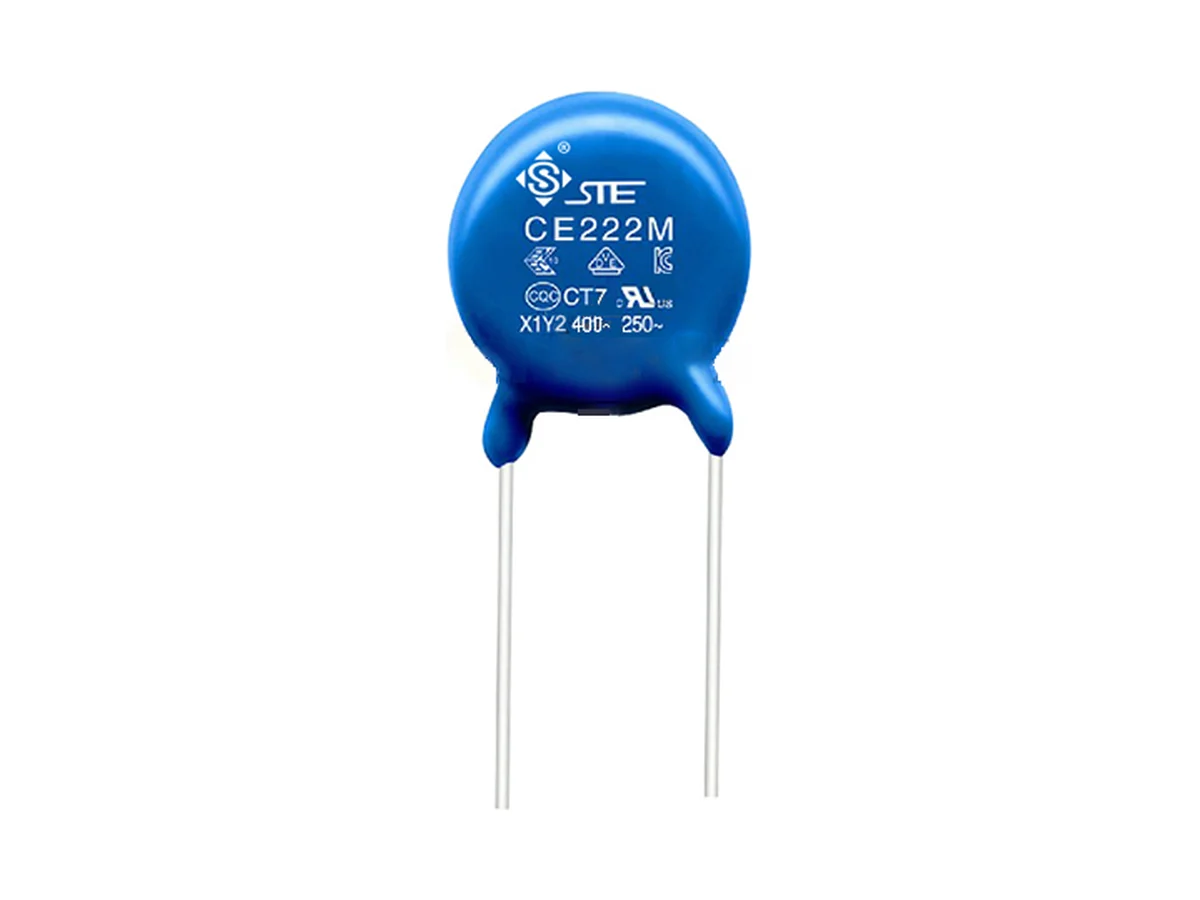

Automotive CE Series Safety Certified Ceramic Capacitors (Class X1/Y2, AEC-Q200)
- Safety class
- X1 440 VAC / Y2 300 VAC (IEC 60384-14)
- Capacitance
- 100–10,000 pF (Y5P / Y5U / Y5V)
Medium- and high-voltage ceramic capacitors
1
HV / SV
HV/SV Series Medium & High Voltage Disc Ceramic Capacitors
- Rated voltage
- 500 VDC–15 kVDC
- Capacitance
- 100 pF–100,000 pF
Film capacitors
24
MPX/X2-THBPPTHB

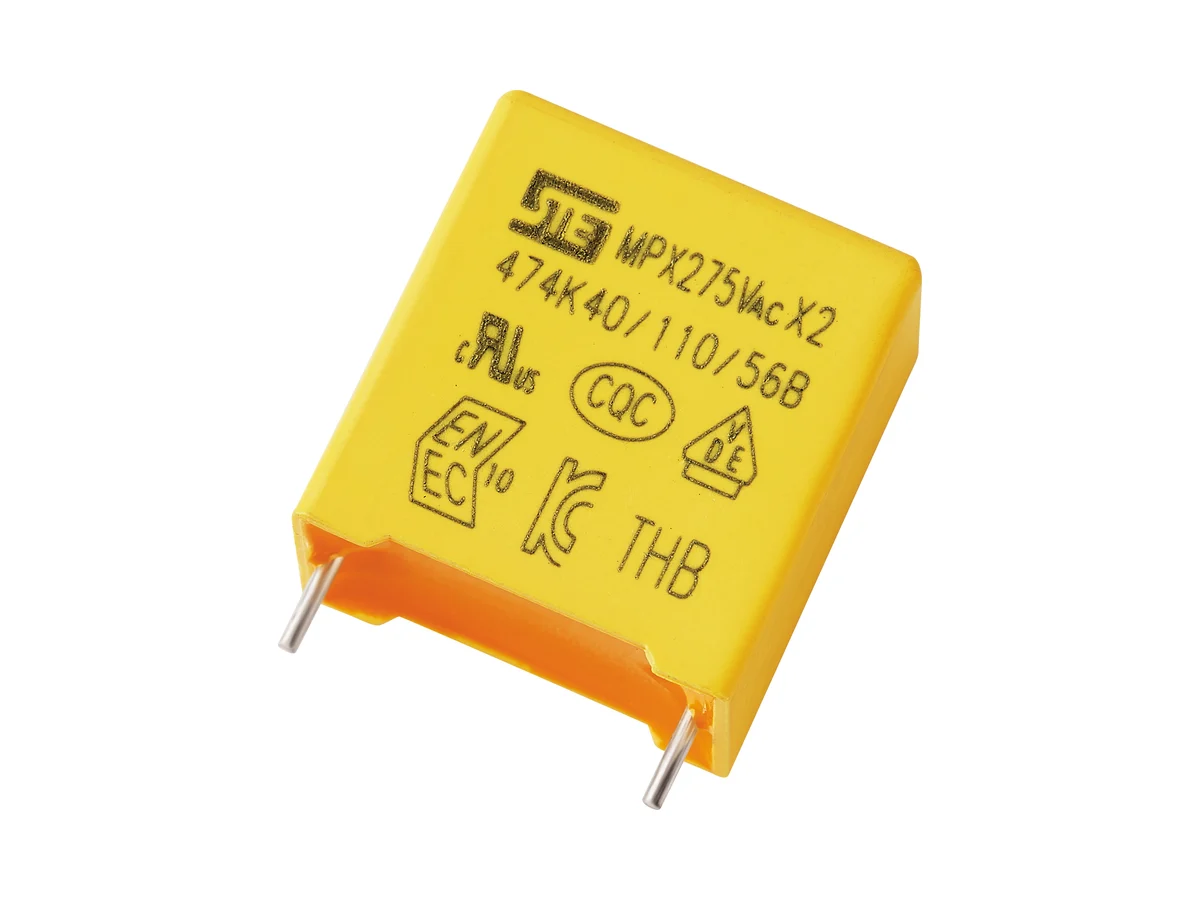

MPX/X2-THB Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X2, THB)
- Safety class
- X2, across-the-line
- Rated voltage
- 275 / 305 / 310 / 330 / 350 VAC
- Capacitance
- 0.001–10 µF

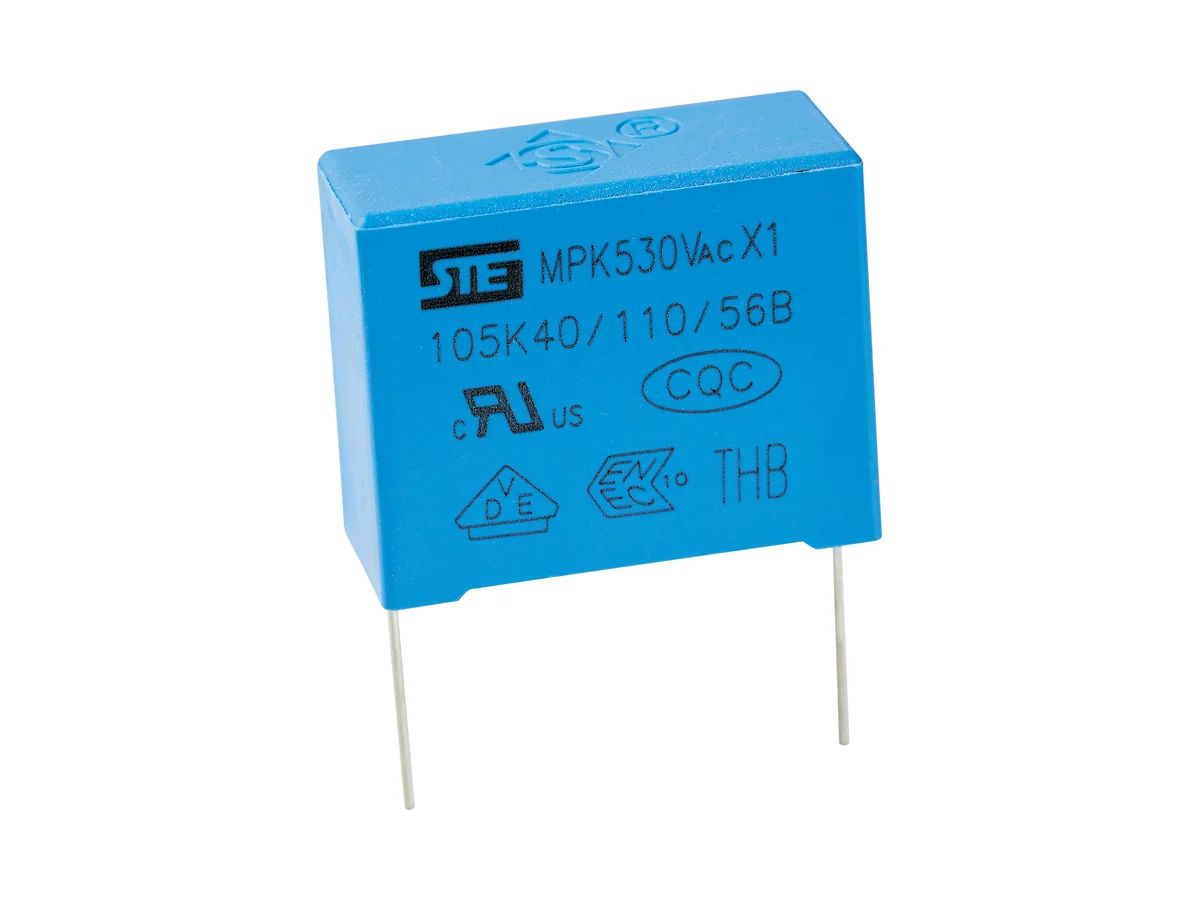

MPK/X1-THBPPTHB
MPK/X1-THB Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X1, THB)
- Safety class
- X1, across-the-line
- Rated voltage
- 330 / 440 / 480 / 500 / 530 VAC
- Capacitance
- 0.001–1.0 µF

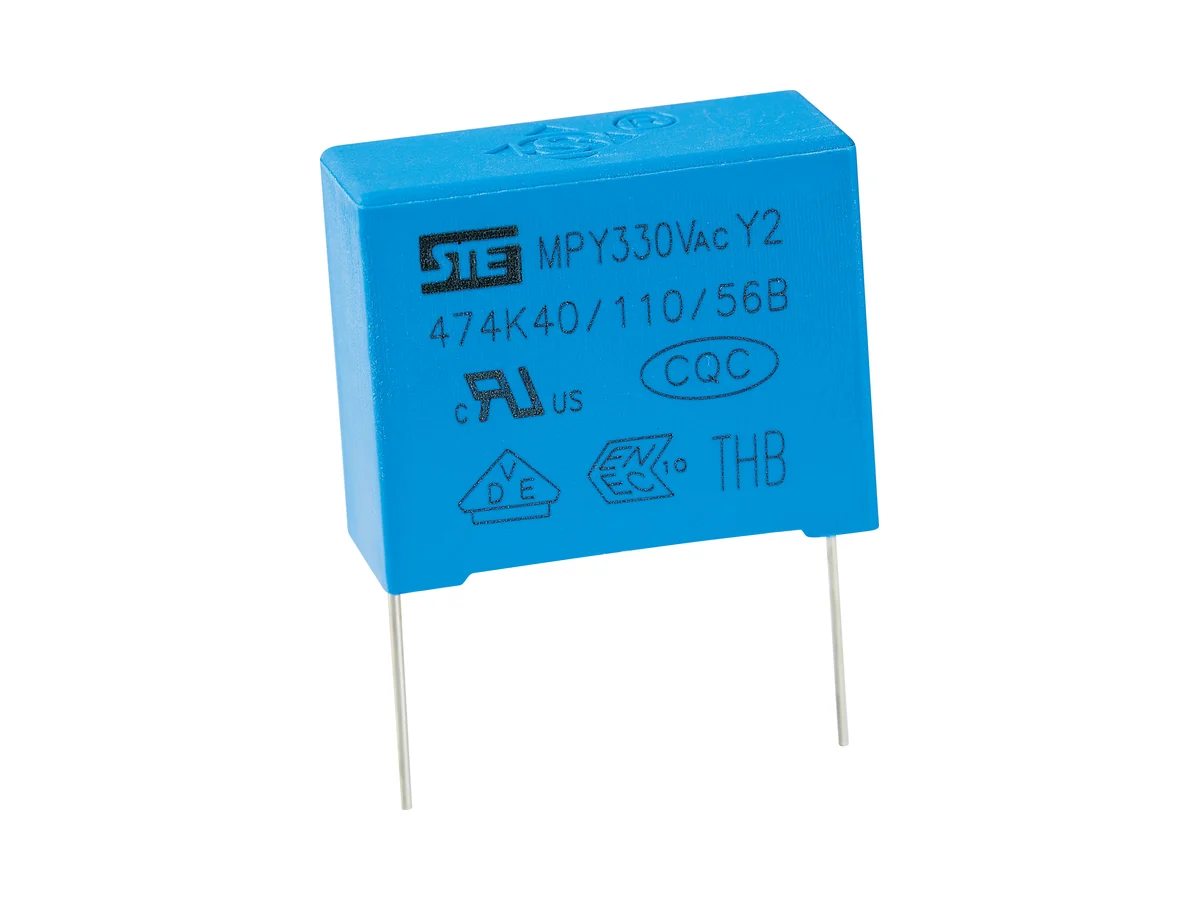

MPY/Y2-THBPPTHB
MPY/Y2-THB Series Metallized Polypropylene Film Interference Suppression Capacitors (Class Y2, THB)
- Safety class
- Y2, line-to-earth
- Rated voltage
- 250 / 275 / 300 / 350 VAC
- Capacitance
- 0.001–1.2 µF

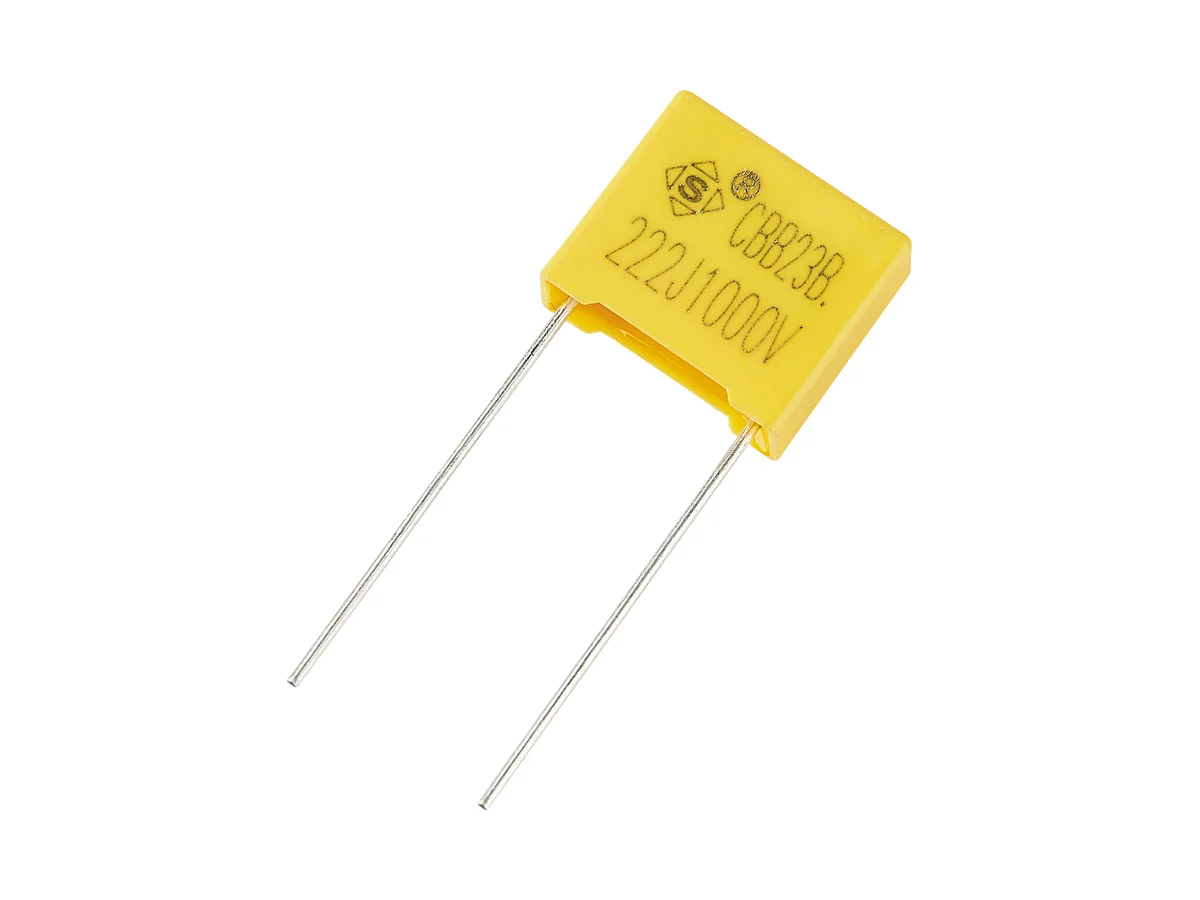

CBB23B-THBPPTHB
CBB23B-THB Series Box-Type Metallized Polypropylene Film Capacitors (THB)
- Rated voltage
- 350 / 400 VAC
- Capacitance
- 0.0022–1.0 µF
- Lead spacing
- 10 / 15 / 22.5 / 27.5 mm
MPB/CBB21B-THBPPTHB
MPB/CBB21B-THB Series Box-Type Metallized Polypropylene Film Capacitors (THB)
- Rated voltage
- 100 / 220 / 275 VAC
- Capacitance
- 0.01–4.7 µF
- Lead spacing
- 10–37.5 mm

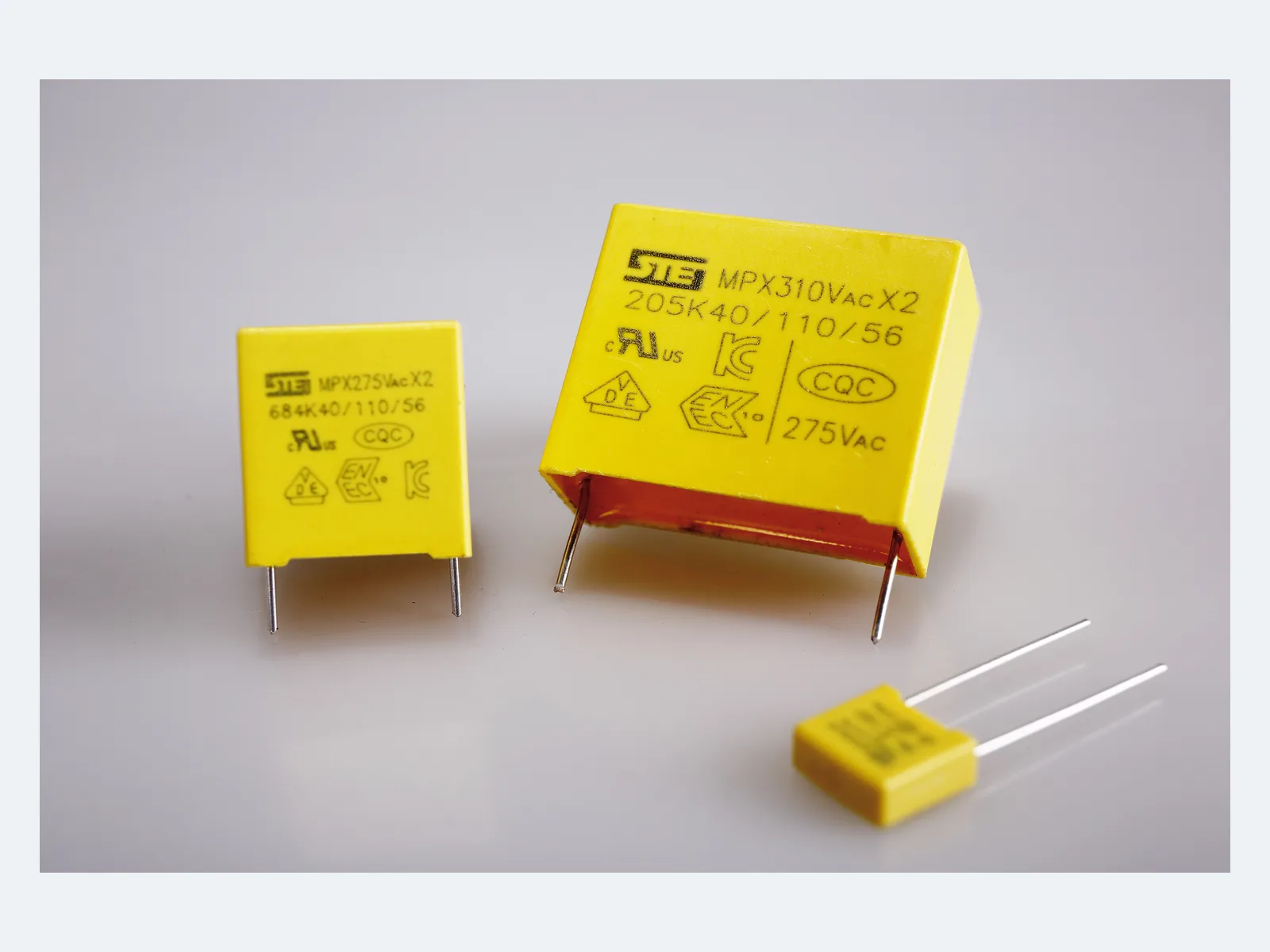

MPX/X2PP
MPX/X2 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X2)
- Safety class
- X2, across-the-line
- Rated voltage
- 275 / 305 / 310 / 330 / 350 VAC
- Capacitance
- 0.001–10 µF
- Lead pitch
- 7.5–37.5 mm

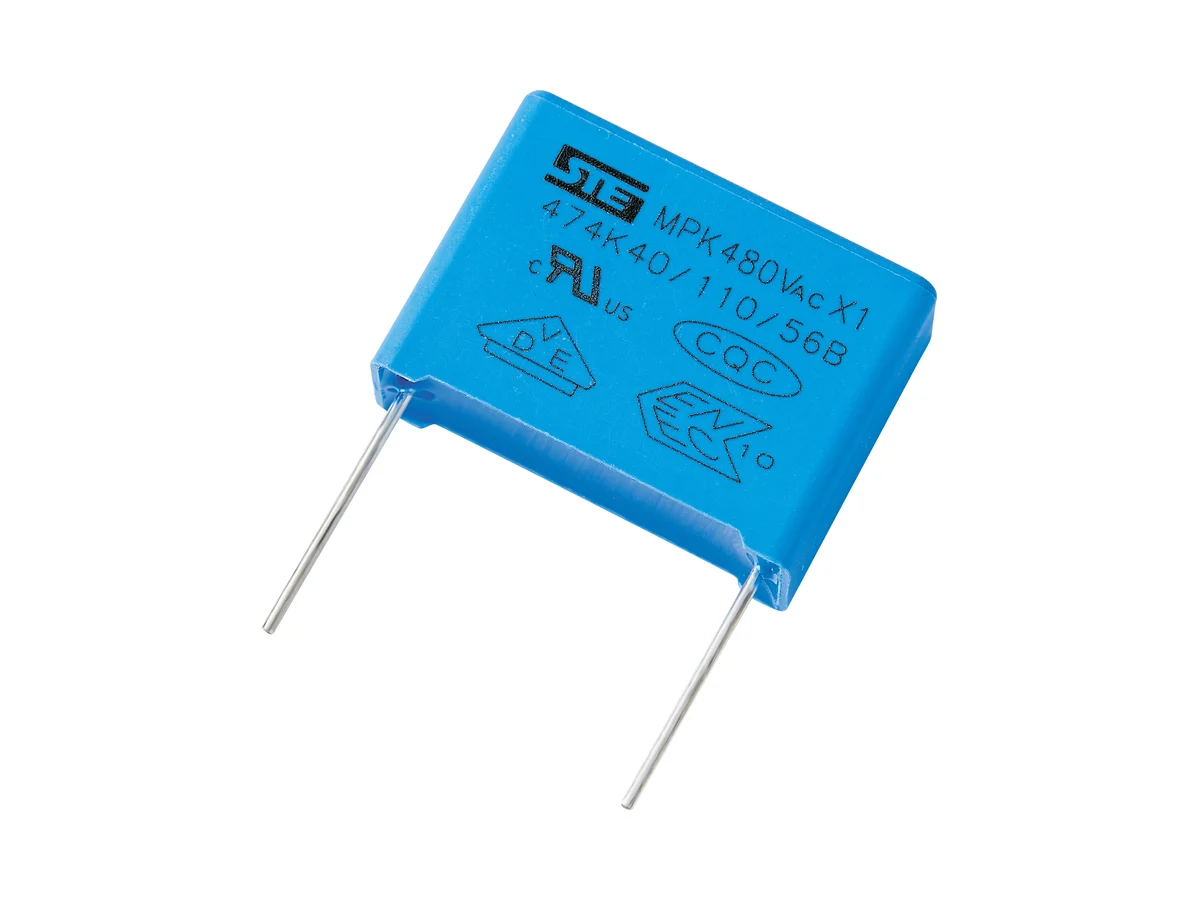

MPK/X1PP
MPK/X1 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X1)
- Safety class
- X1, across-the-line
- Rated voltage
- 330 / 440 / 480 / 500 / 530 VAC
- Capacitance
- 0.001–1.0 µF
MPY/Y2PP

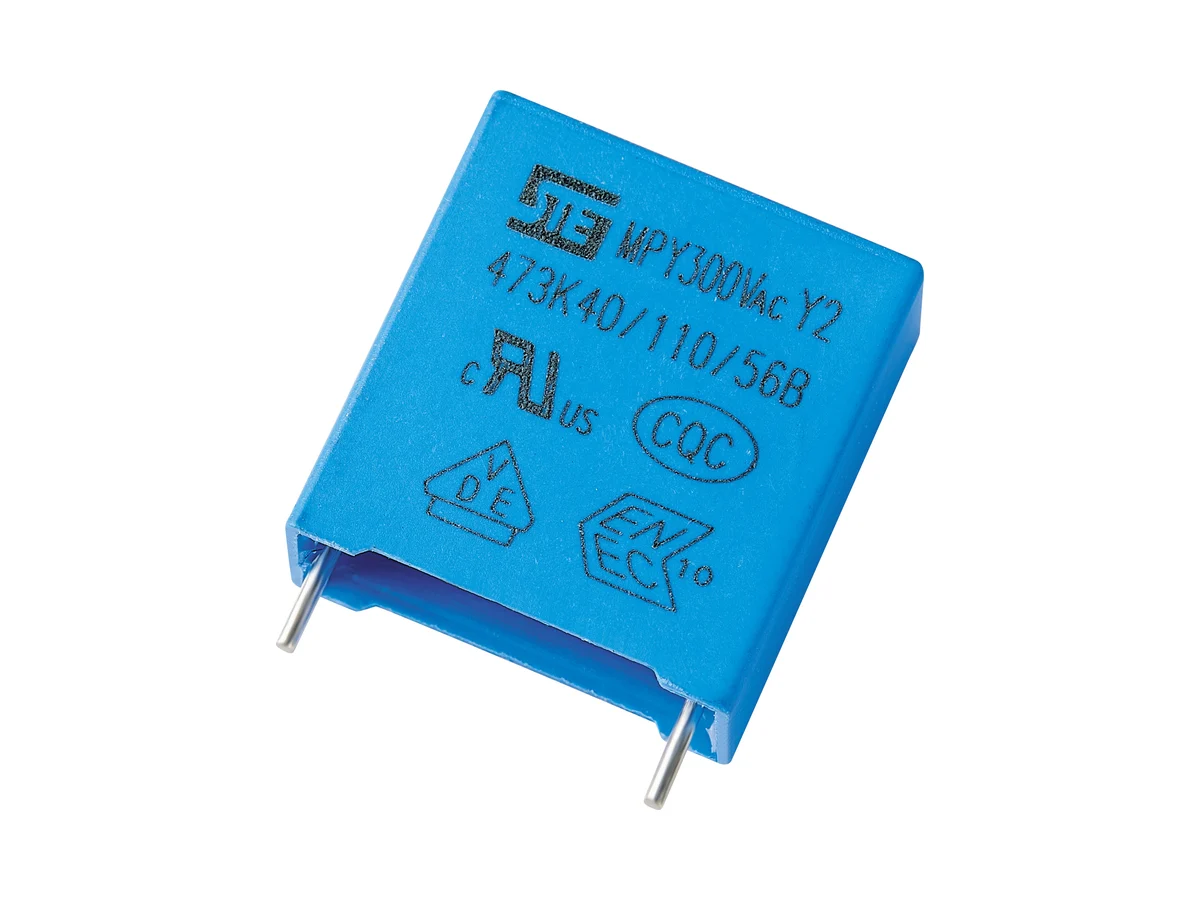

MPY/Y2 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class Y2)
- Safety class
- Y2, line-to-earth
- Rated voltage
- 250 / 275 / 300 / 350 VAC
- Capacitance
- 0.001–1.2 µF
- Lead pitch
- 7.5–37.5 mm

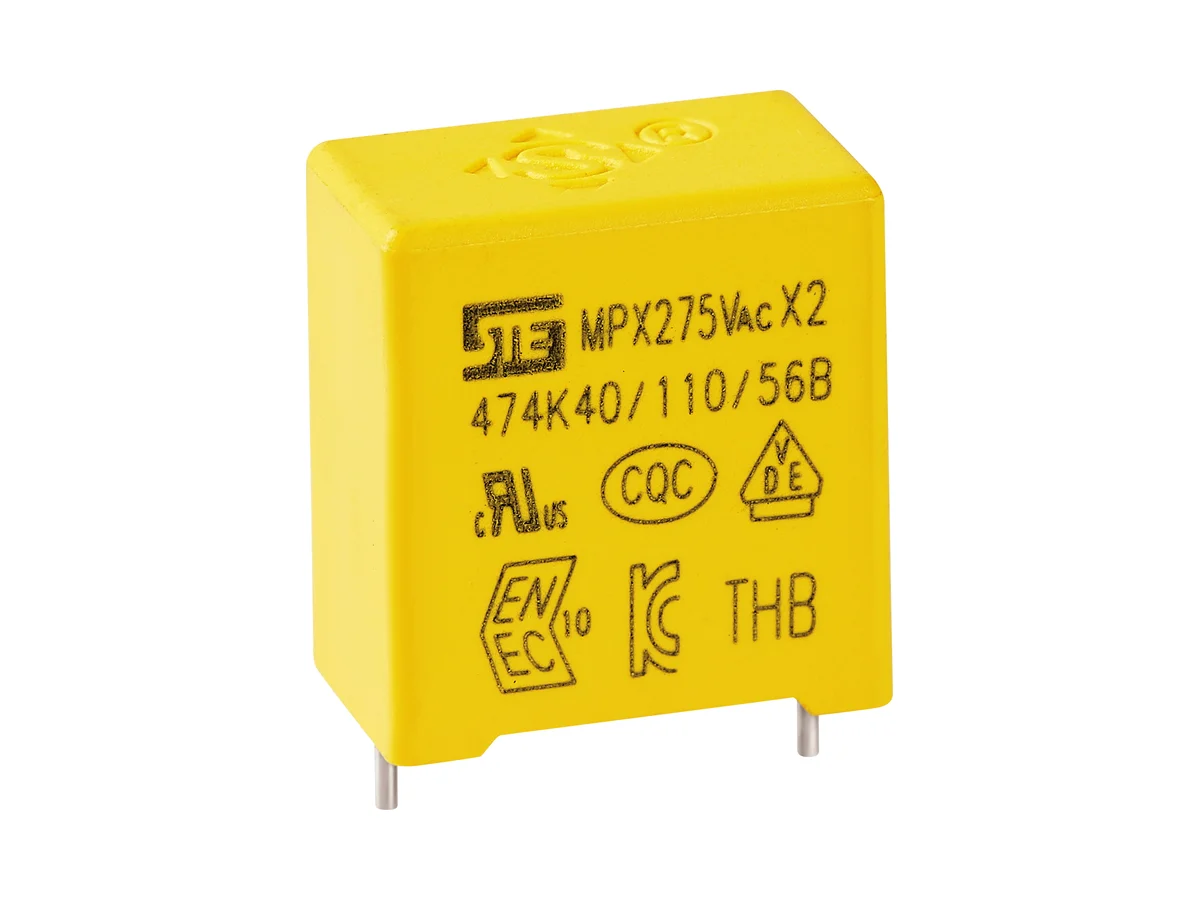

MPX/X2-APPAEC-Q200
Automotive MPX/X2 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X2, AEC-Q200)
- Safety class
- X2, across-the-line
- Rated voltage
- 275 / 305 / 310 / 330 / 350 VAC
- Capacitance
- 0.001–10 µF

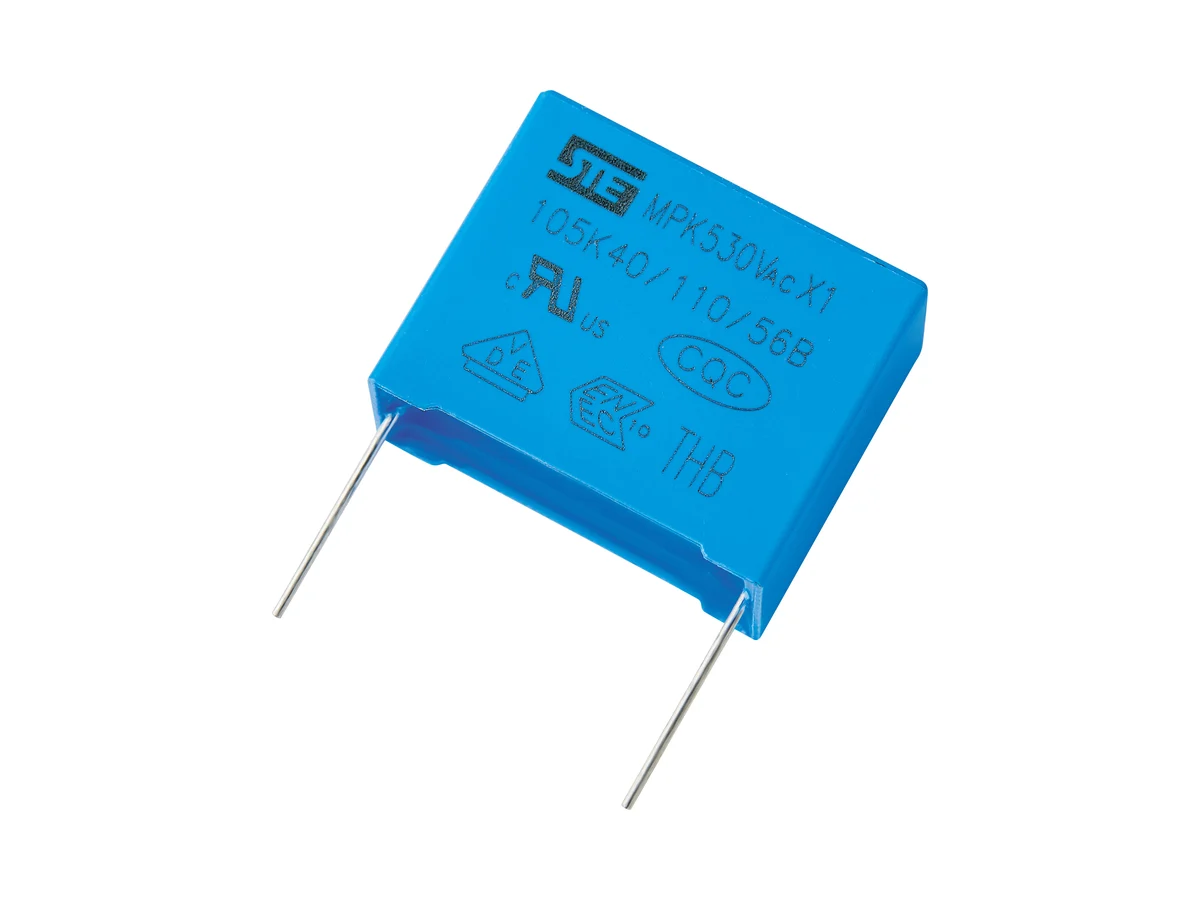

MPK/X1-APPAEC-Q200
Automotive MPK/X1 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class X1, AEC-Q200)
- Safety class
- X1, across-the-line
- Rated voltage
- 330 / 440 / 480 / 500 / 530 VAC
- Capacitance
- 0.001–1.0 µF
MPY/Y2-APPAEC-Q200
Automotive MPY/Y2 Series Metallized Polypropylene Film Interference Suppression Capacitors (Class Y2, AEC-Q200)
- Safety class
- Y2, line-to-earth
- Rated voltage
- 250 / 275 / 300 / 350 VAC
- Capacitance
- 0.001–1.2 µF

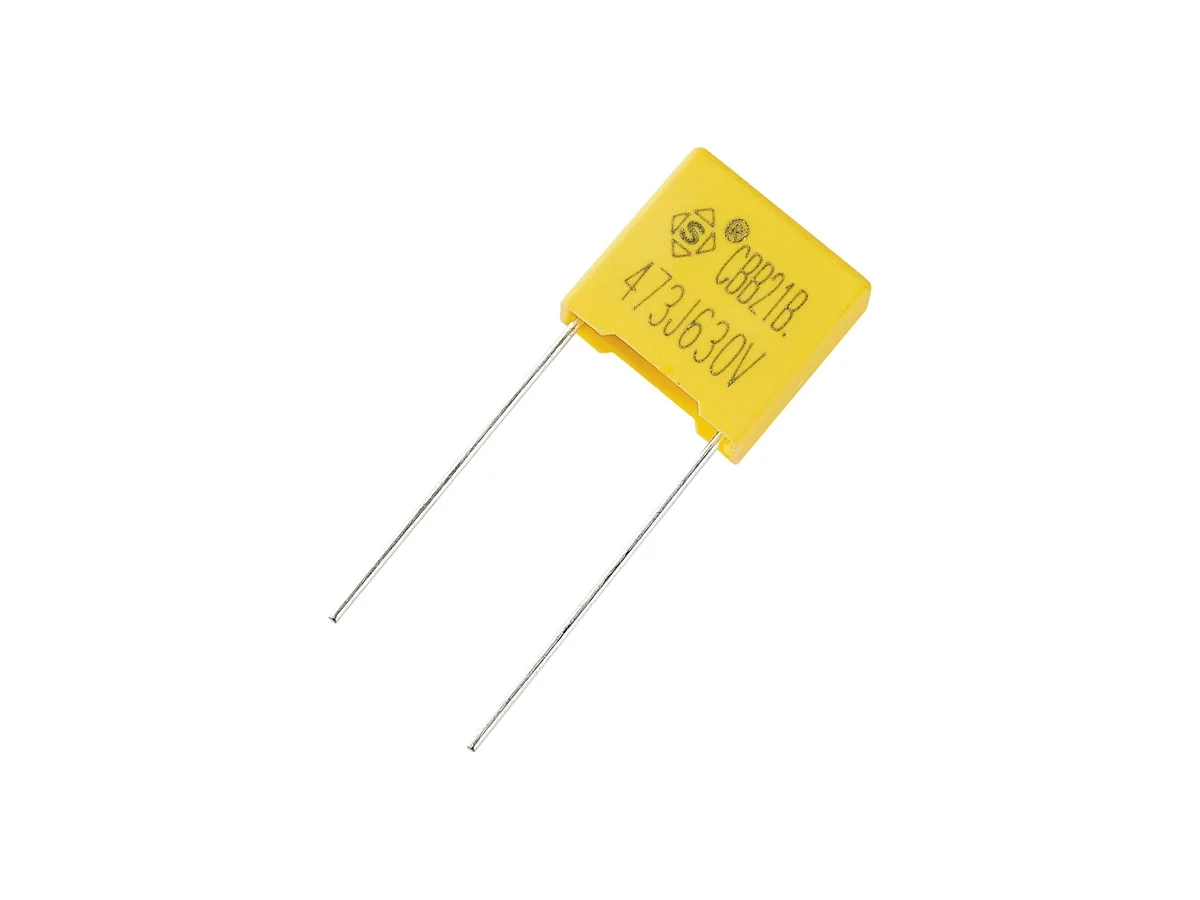

MPB/CBB21BPP
MPB/CBB21B Series Box-Type Metallized Polypropylene Film Capacitors
- AC application voltage
- 63–250 VAC
- Rated voltage
- 100 / 250 / 400 / 630 VDC
- Capacitance
- 0.01–10 µF
- Lead spacing
- 7.5–37.5 mm
CBB23BPP
CBB23B Series High-Voltage Box-Type Metallized Polypropylene Film Capacitors
- Rated voltage
- 400–900 VAC / 1,000–2,000 VDC
- Capacitance
- 1–100 nF
- Lead spacing
- 10 / 15 / 22.5 mm
PPSB/CBB81BPP
PPSB/CBB81B Series High-Voltage Box-Type Metallized Polypropylene Film Capacitors
- Rated voltage
- 1,000–2,000 VDC
- Capacitance
- 0.01–0.047 µF

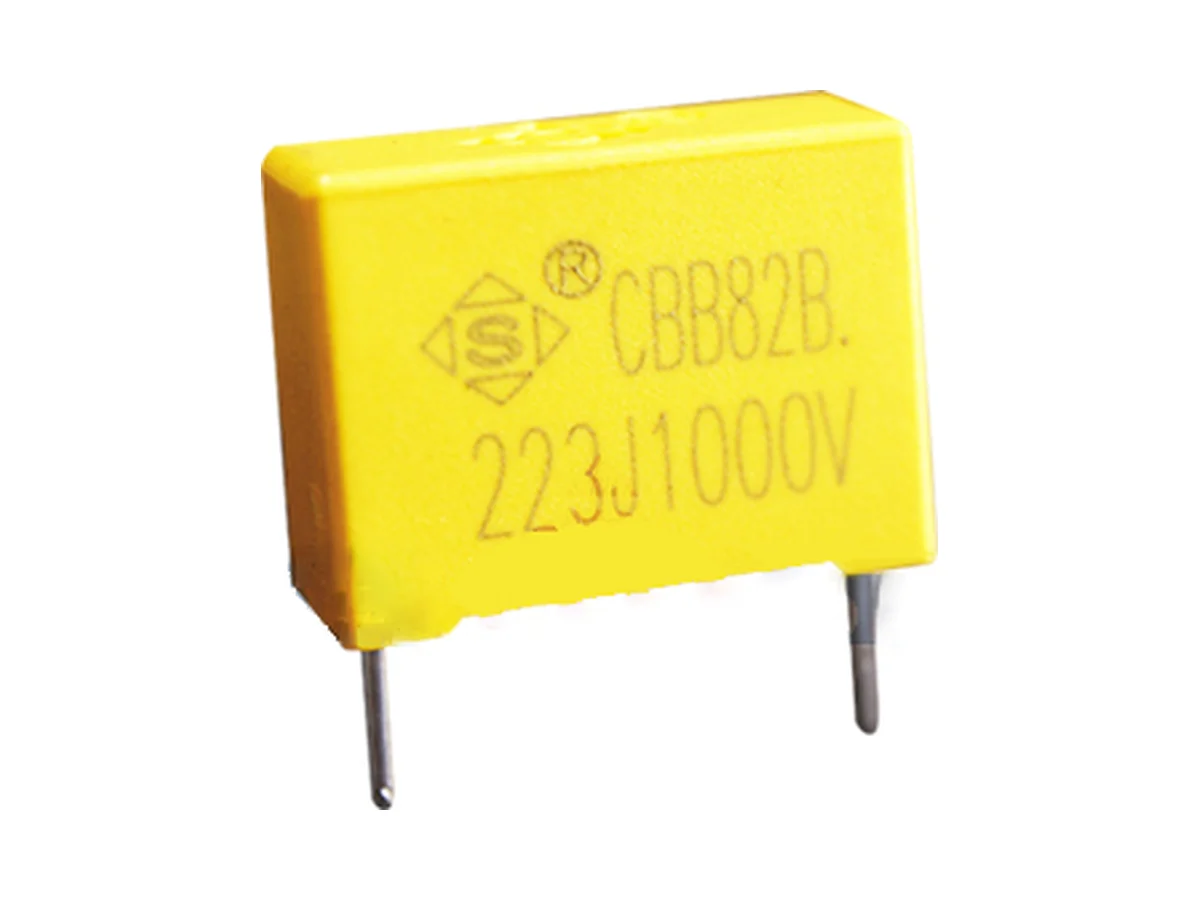

MMKP82/CBB82BPP
MMKP82/CBB82B Series Double-Sided Metallized Polypropylene Film Capacitors (Box-Type)
- Rated voltage
- 400–900 VAC / 1,000–2,000 VDC
- Capacitance
- 1–100 nF
- Lead spacing
- 10 / 15 / 22.5 mm
PPN/CBB13PP
PPN/CBB13 Series Non-Inductive Polypropylene Film Capacitors
- Rated voltage
- 400 / 630 / 1,000 VDC
- Capacitance
- 1–47 nF
- Lead spacing
- 7.5 / 10 / 15 mm
MPP/CBB21PP
MPP/CBB21 Series Metallized Polypropylene Film Capacitors
- Rated voltage
- 100 / 250 / 400 / 630 VDC
- Capacitance
- 0.01–3.3 µF
- Lead spacing
- 7.5–27.5 mm
CBB23PP
CBB23 Series Dipped Metallized Polypropylene Film Capacitors
- Rated voltage
- 1,000–1,600 VDC
- Capacitance
- 0.001–1.0 µF
PPS/CBB81PP

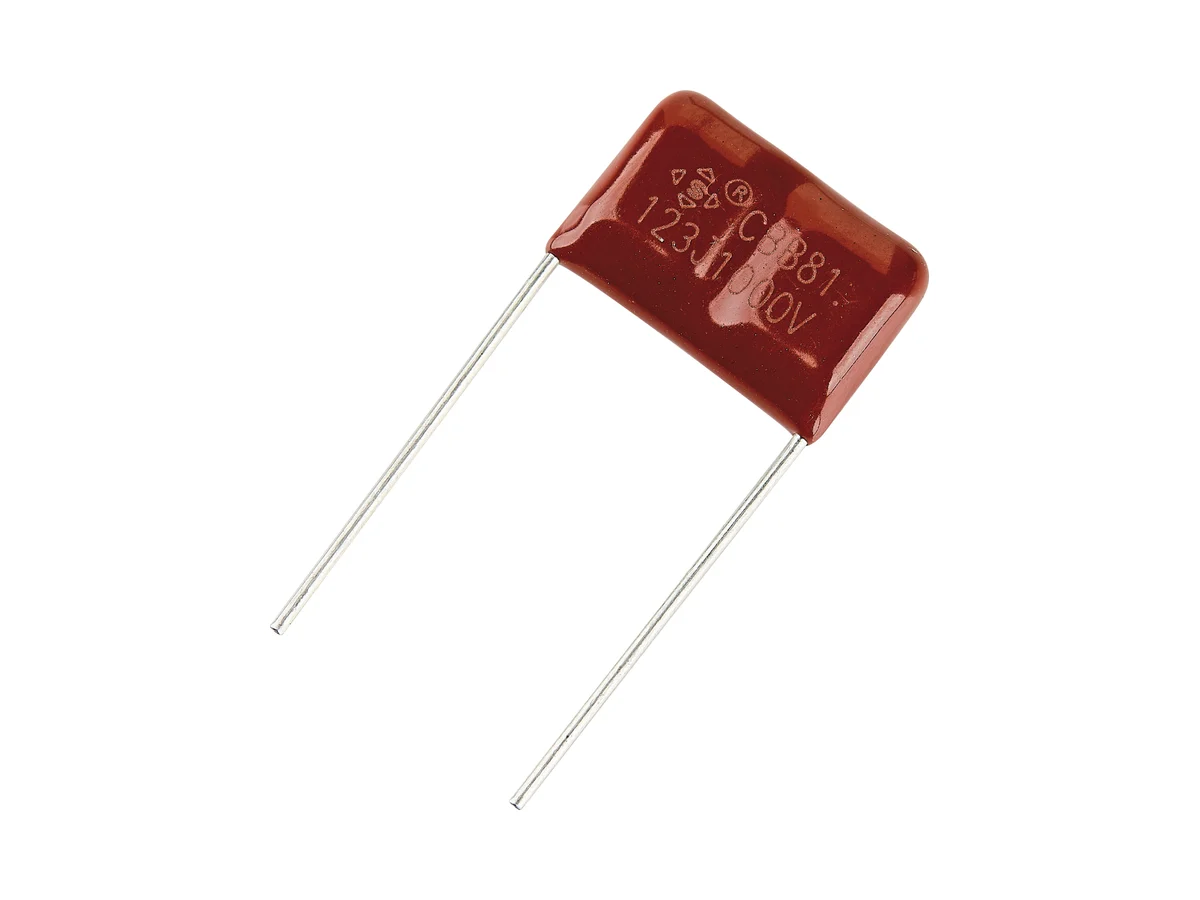

PPS/CBB81 Series High-Voltage Metallized Polypropylene Film Capacitors
- Rated voltage
- 1,000 / 1,250 / 1,600 / 2,000 VDC
- Capacitance
- 1–33 nF
- Lead spacing
- 15 / 22.5 mm

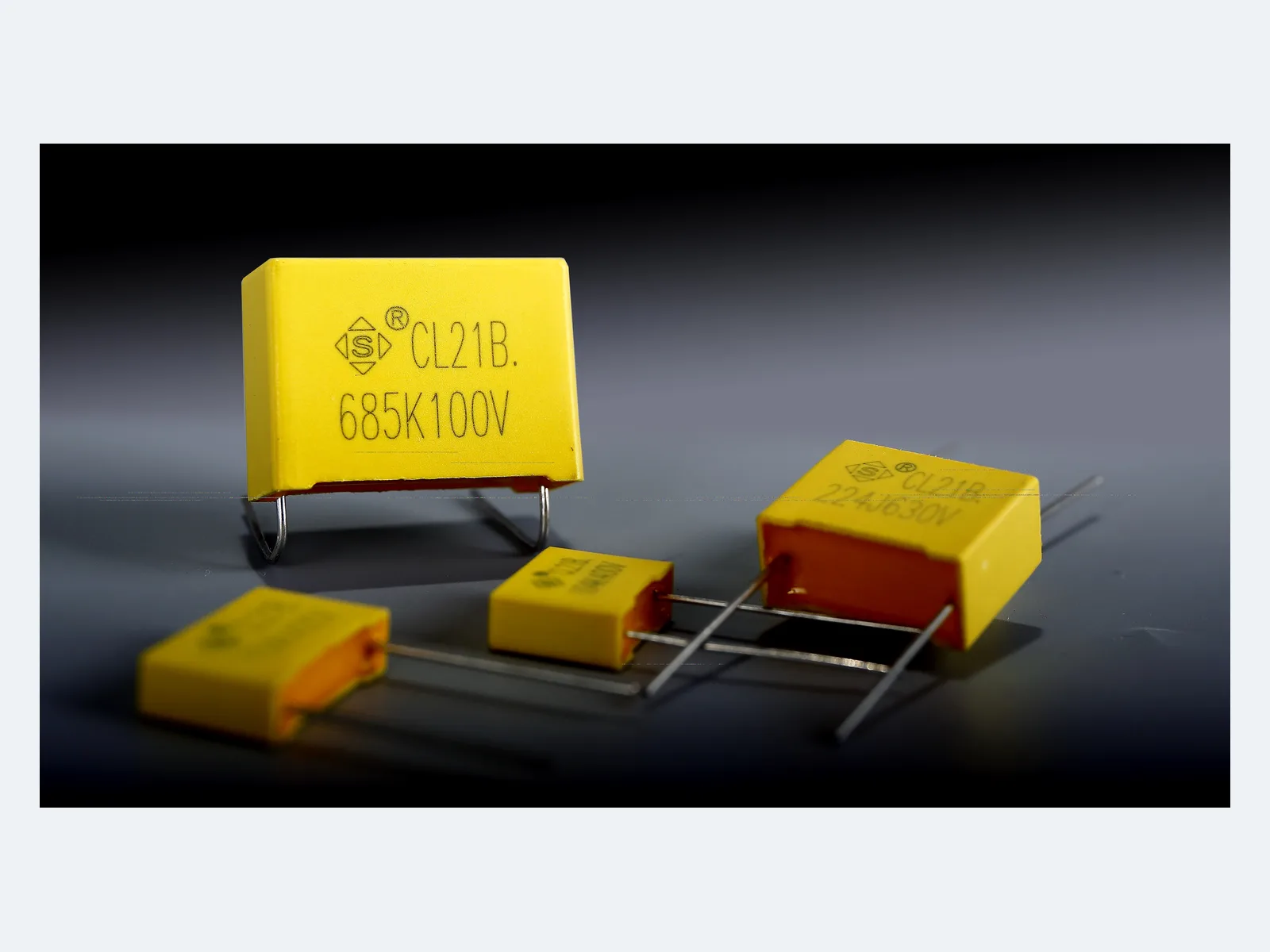

MEB/CL21BPET
MEB/CL21B Series Box-Type Metallized Polyester Film Capacitors
- Rated voltage
- 100 / 250 / 400 / 630 VDC
- Capacitance
- 10 nF–2.2 µF
- Lead spacing
- 10–27.5 mm

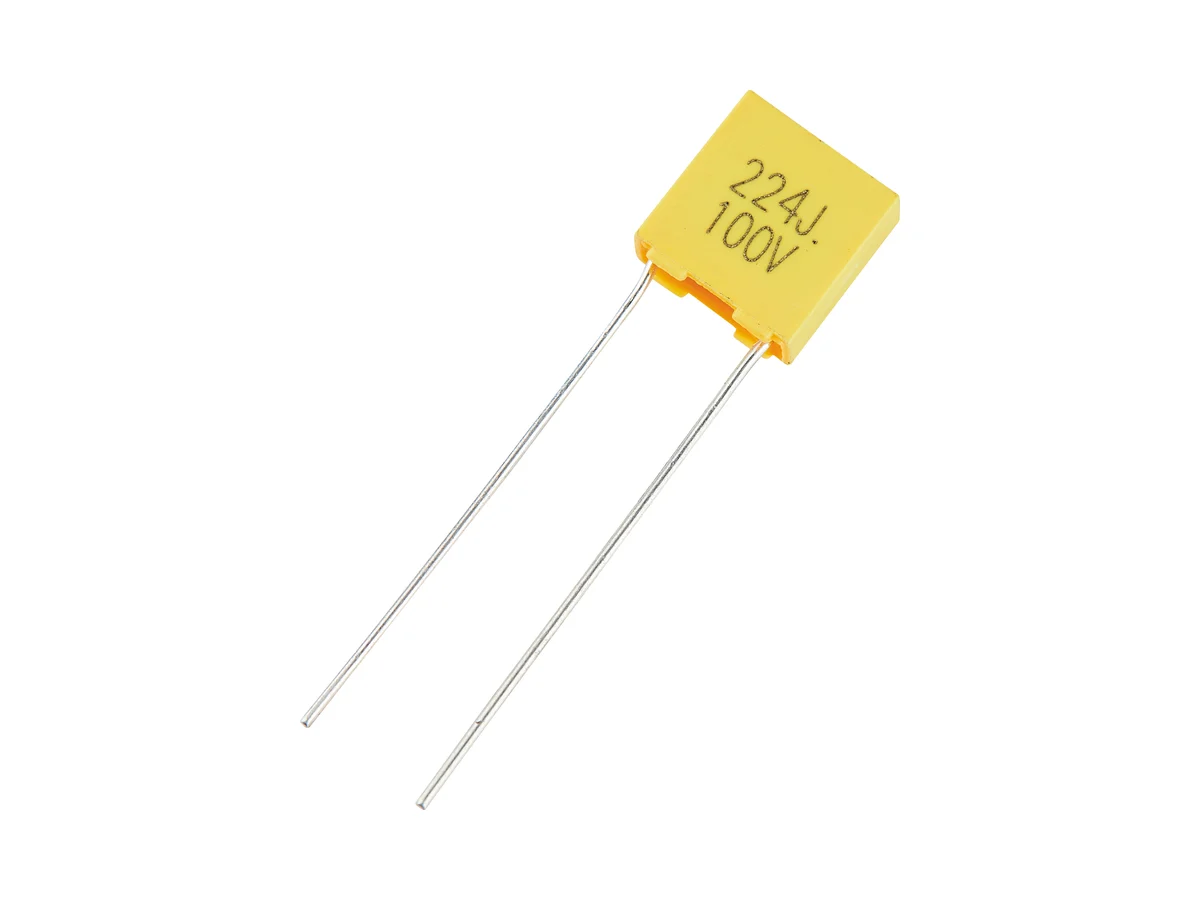

MEMB/CL23PET
MEMB/CL23 Series Miniature Metallized Polyester Film Capacitors
- Rated voltage
- 63 / 100 / 250 / 400 / 630 VDC
- Capacitance
- 1 nF–1 µF
- Lead spacing
- 5 mm
MEF/CL21PET
MEF/CL21 Series Metallized Polyester Film Capacitors
- Rated voltage
- 100 / 250 / 400 / 630 VDC
- Capacitance
- 10 nF–10 µF
- Lead spacing
- 7.5–27.5 mm

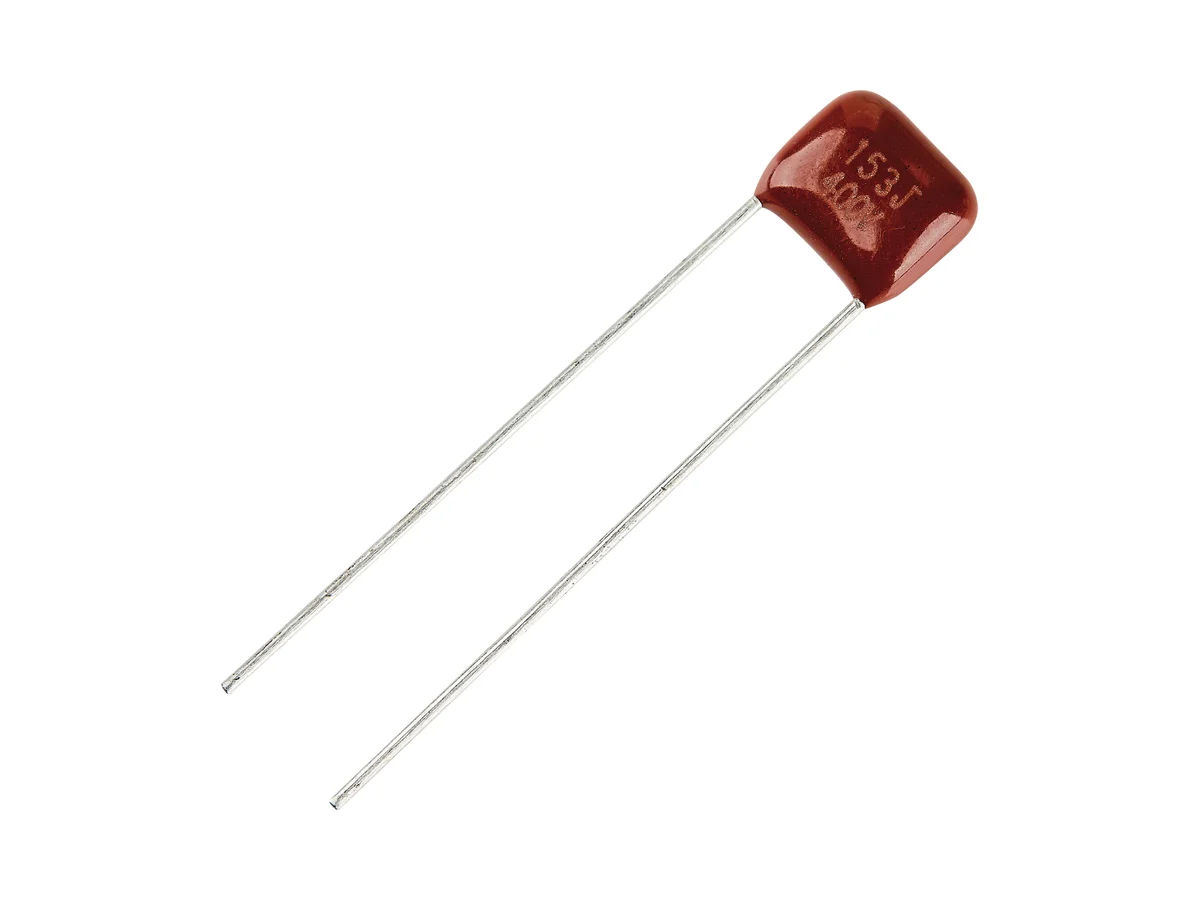

MEF/CL21XPET
MEF/CL21X Series Compact Metallized Polyester Film Capacitors
- Rated voltage
- 50 / 63 / 100 VDC
- Capacitance
- 1 nF–1 µF
- Lead spacing
- 5 / 7.5 mm

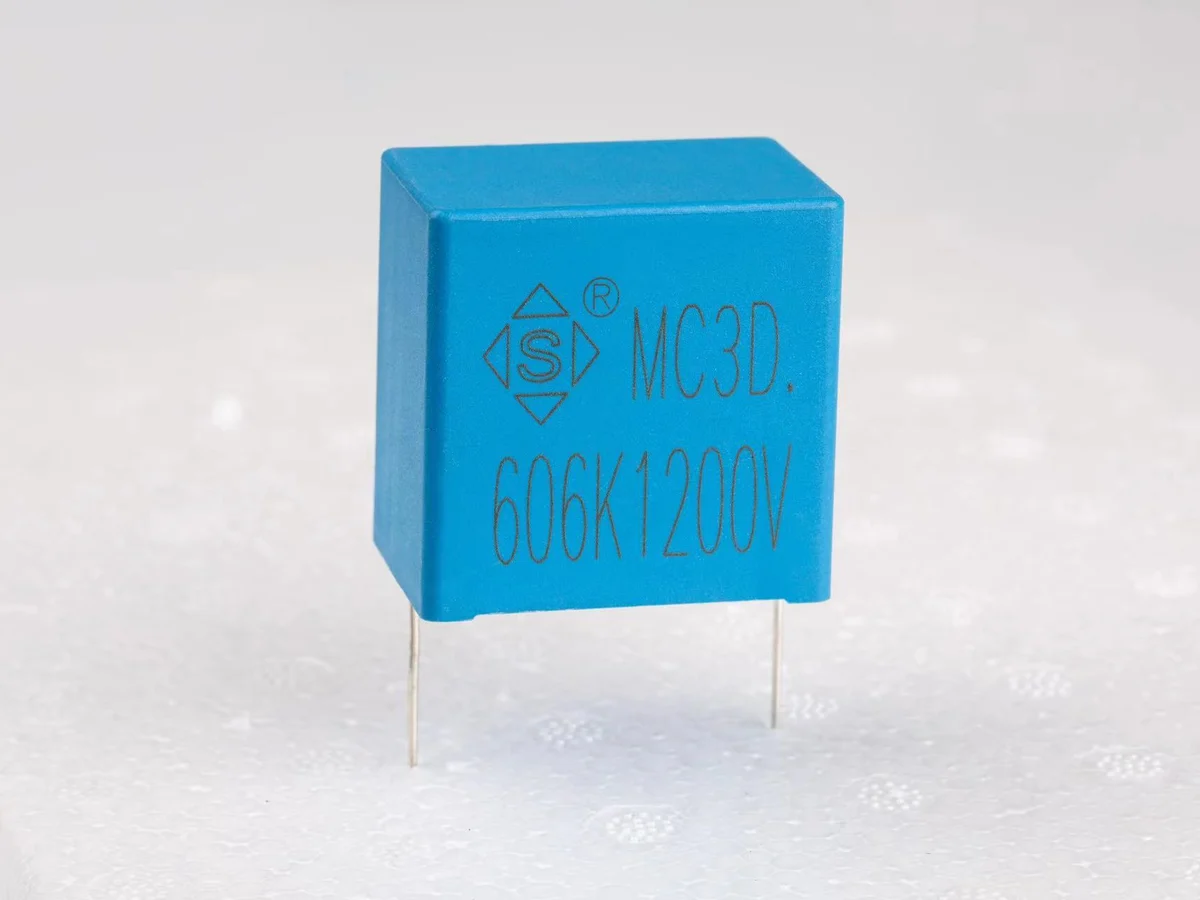

MC3DPP
MC3D Series Metallized Polypropylene DC-Link Film Capacitors
- Rated voltage
- 500–1,200 VDC
- Capacitance
- 2–180 µF
- Lead pitch
- 27.5 / 37.5 / 52.5 mm
Varistors
6
S

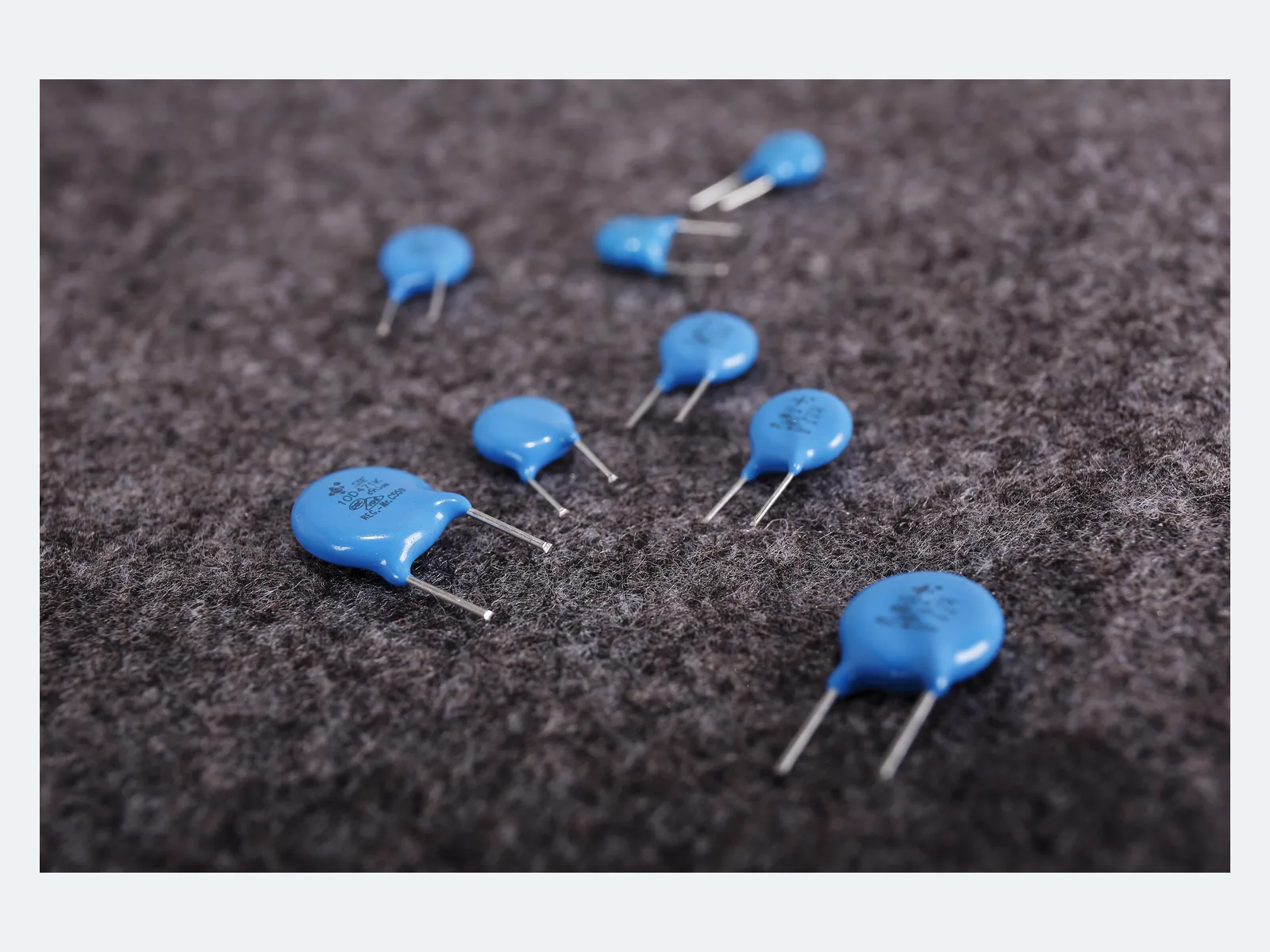

S Series Standard Radial-Leaded Metal-Oxide Varistors
- Nominal varistor voltage
- 18–1,100 V
- Max. continuous voltage
- 11–680 VAC / 14–895 VDC
- Disc size
- 05D–20D
- Max. peak current (8/20 µs)
- 100–6,500 A
- Max. energy (10/1000 µs)
- 0.4–383 J

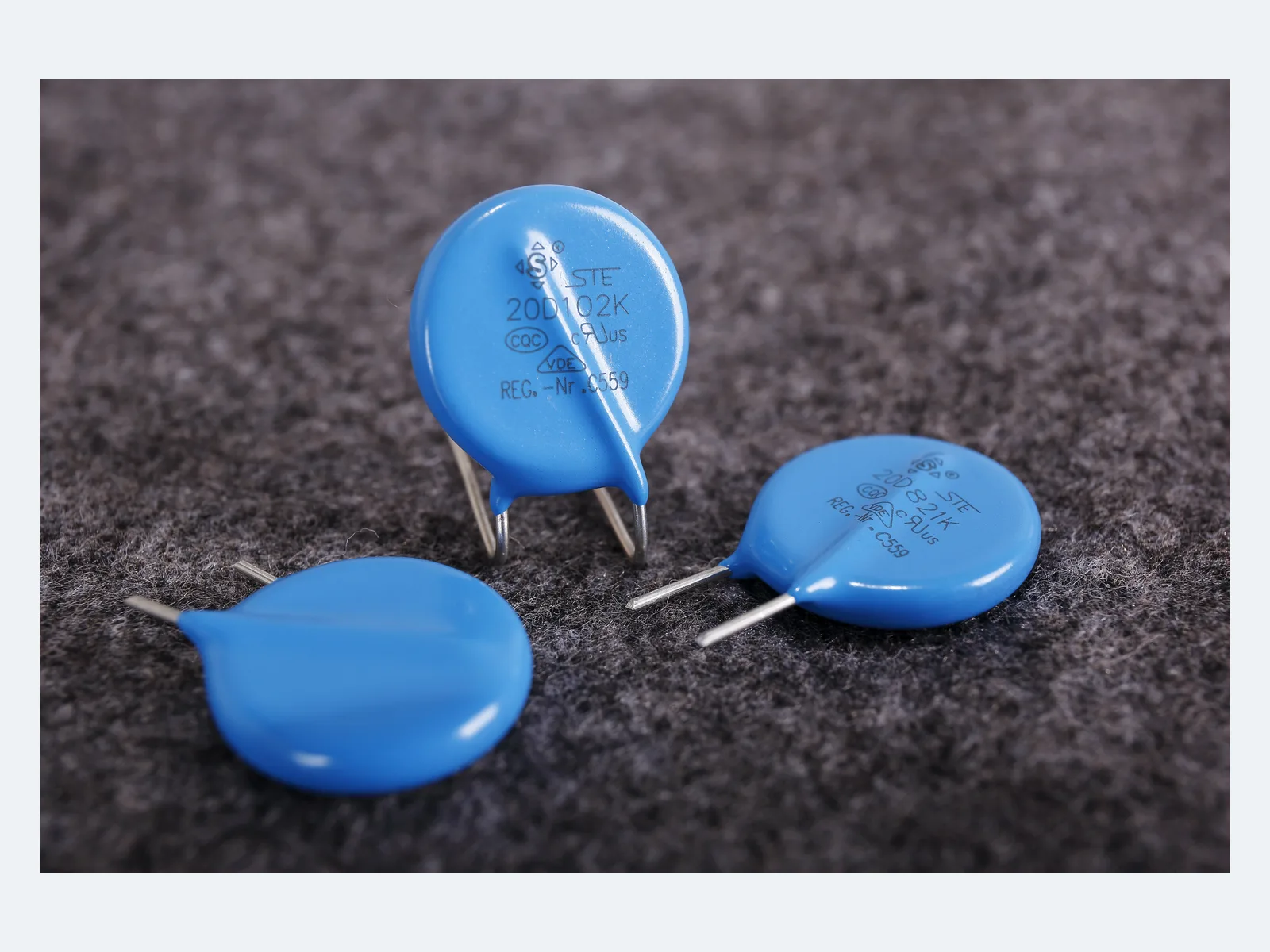

Z
Z Series High-Energy Radial-Leaded Metal-Oxide Varistors
- Nominal varistor voltage
- 18–1,200 V
- Max. continuous voltage
- 11–750 VAC / 14–990 VDC
- Disc size
- 05D–25D
- Max. peak current (8/20 µs)
- 250–18,000 A
- Max. energy (10/1000 µs)
- 0.6–750 J
Q

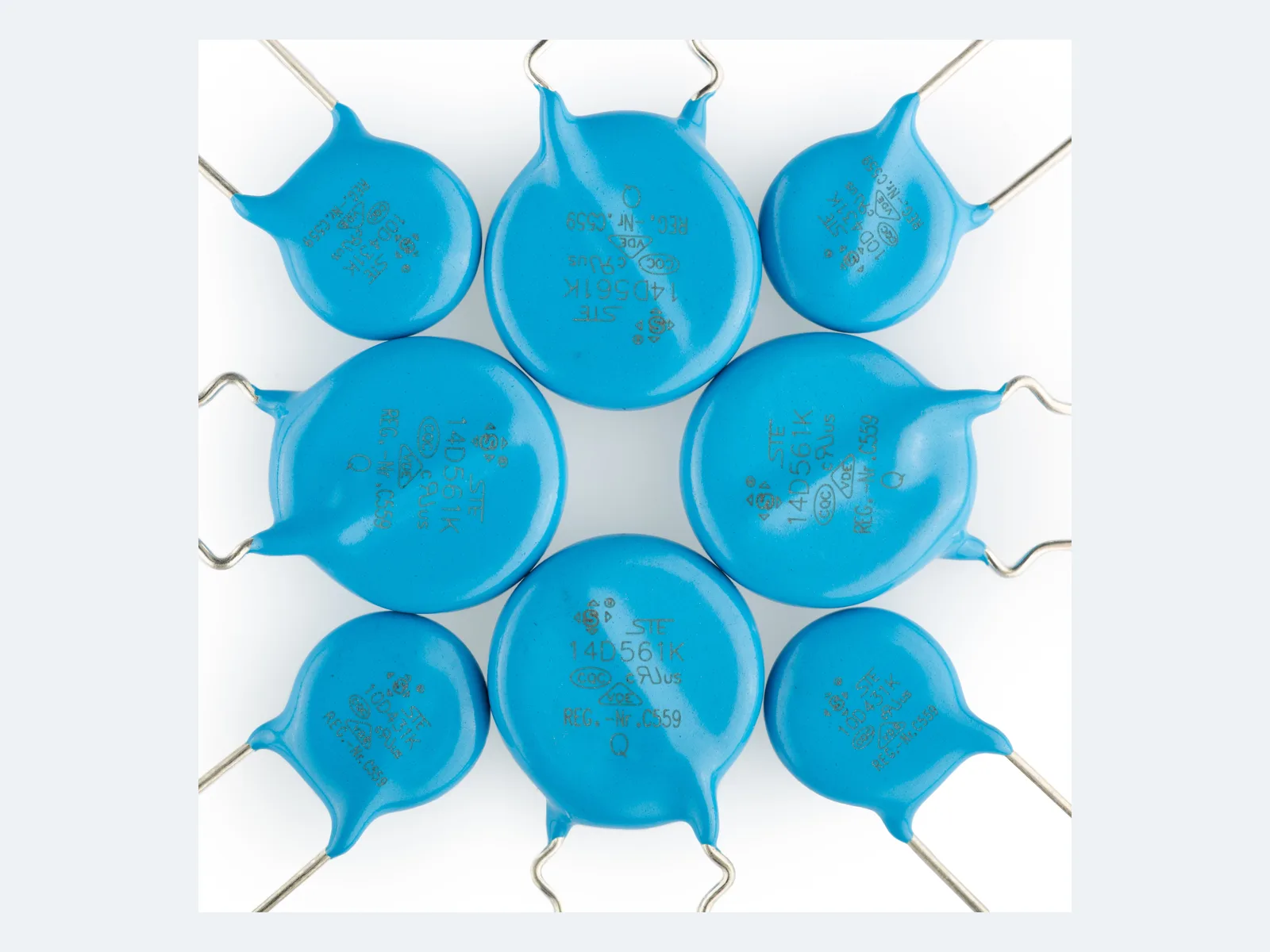

Q Series 6kV/3kA Radial-Leaded Metal-Oxide Varistors
- Nominal varistor voltage
- 82–1,100 V
- Max. continuous voltage
- 50–680 VAC / 65–895 VDC
- Disc size
- 10D–20D
- Max. peak current (8/20 µs)
- 3,500–10,000 A
- Max. energy (10/1000 µs)
- 30–720 J
Q-AAEC-Q200
Automotive Q Series 6kV/3kA Radial-Leaded Metal-Oxide Varistors (AEC-Q200)
- Nominal varistor voltage
- 82–1,000 V
- Max. continuous voltage
- 50–625 VAC / 65–825 VDC
- Disc size
- 10D–20D
- Max. peak current (8/20 µs)
- 3,500–10,000 A
- Max. energy (10/1000 µs)
- 29.4–280 J
D
D Series Large-Disc High-Energy Metal-Oxide Varistors
- Nominal varistor voltage V1mA
- 200–1,800 V
- Disc size
- 32–53 mm
R
R Series High-Energy Metal-Oxide Varistors
- Nominal varistor voltage V1mA
- 200–1,800 V
- Disc size
- 10–34 mm

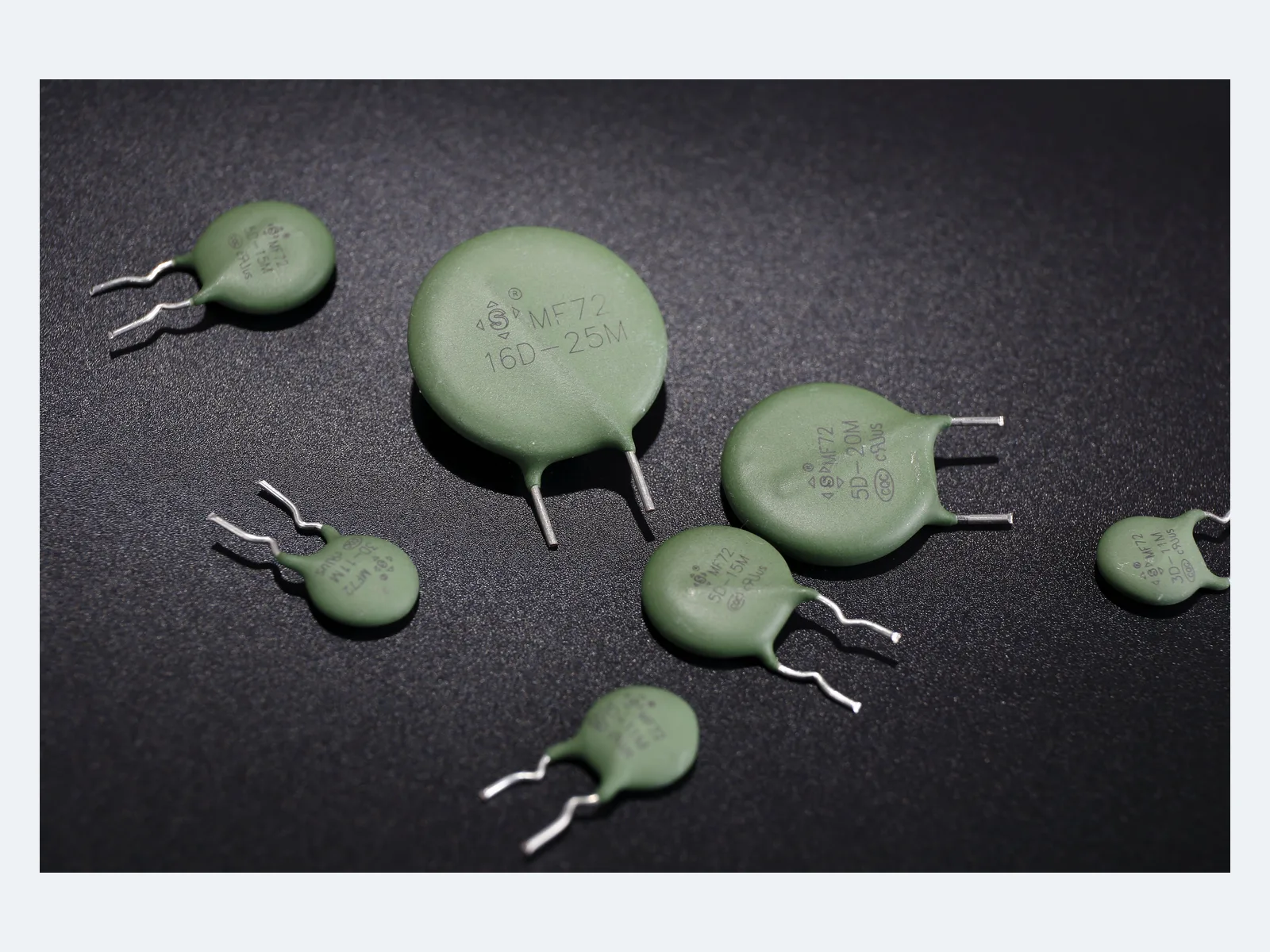

NTC inrush current limiters
2
NTC-PS
PS Series NTC Inrush Current Limiters
- Resistance R25
- 0.7–400 Ω
- Max. steady-state current (25 °C)
- 0.1–12 A
- B value
- 2,400–3,400 K
- Disc size
- 5D–25D
NTC-PP
PP Series NTC Inrush Current Limiters
- Resistance R25
- 2.5–200 Ω
- Max. steady-state current (25 °C)
- 0.2–5.0 A
- B value
- 2,500–3,400 K
- Disc size
- 5D–20D
NTC sensing thermistors
7
MF51 Special

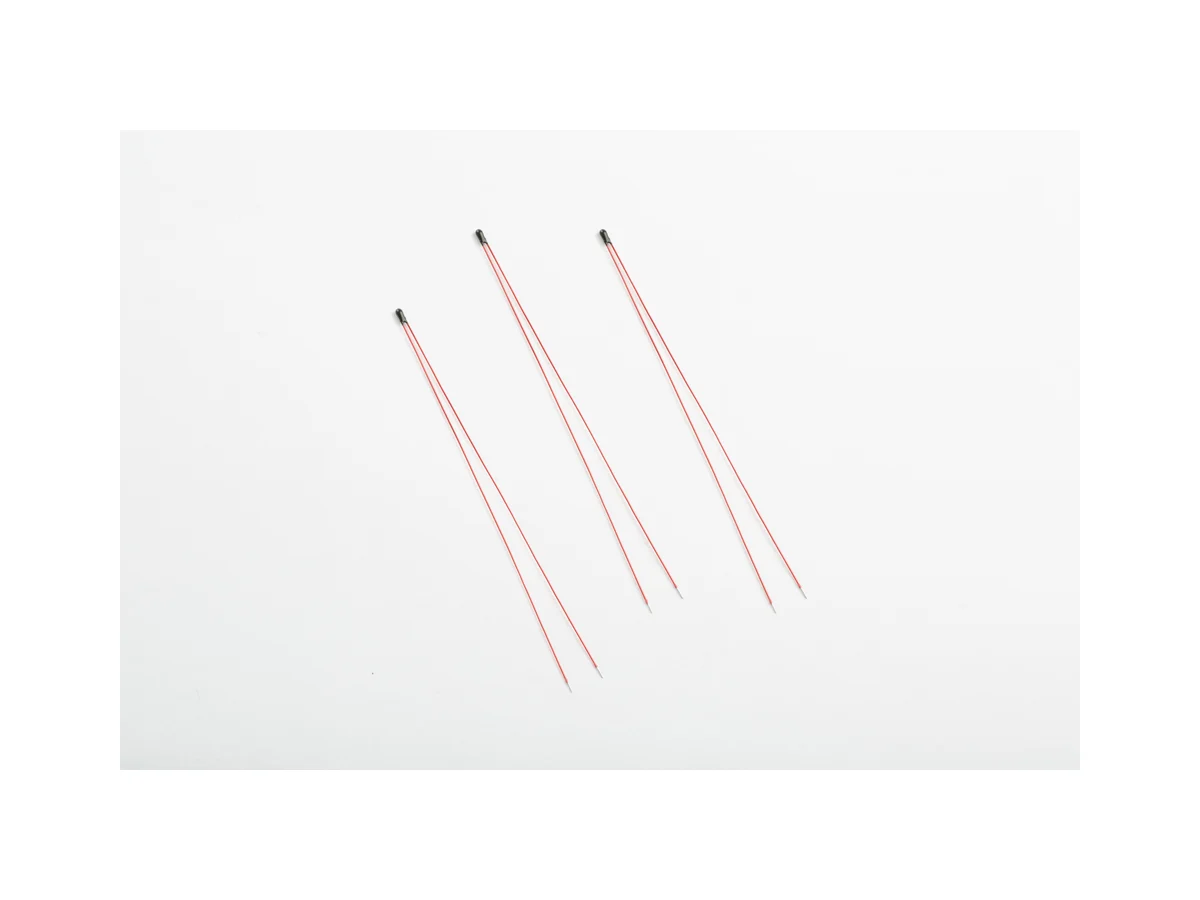

MF51 Special NTC Temperature Sensors for Electronic Thermometers
- Resistance
- 0.2–1,000 kΩ
- B25/50 range
- 3,270–4,500 K
- Operating temperature
- −40 °C to +100 °C
MF52
MF52 Series Bead-Type Precision NTC Temperature Sensors
- R25
- 10 / 50 / 100 kΩ
- B25/50
- 3,380 K / 3,950 K
- Operating temperature
- −40 °C to +125 °C
MF58
MF58 Series Glass-Encapsulated NTC Thermistors (Diode Type)
- R25
- 0.1 kΩ–3.78 MΩ
- Operating temperature
- −55 °C to +250 °C
MF59
MF59 Series Glass-Encapsulated Chip NTC Thermistors
- R25
- 0.1–100 kΩ
- Operating temperature
- −55 °C to +220 °C
CWF
CWF Series Precision NTC Temperature Sensors
- R25
- 0.1 kΩ–1 MΩ
- B25/50
- 3,100–4,500 K (11 families)
- Operating temperature (element)
- −55 °C to +125 °C
MF11
MF11 Series NTC Thermistors for Temperature Compensation
- R25
- 5 Ω–500 kΩ
- B25/50
- 2,600–4,750 K
- Operating temperature
- −30 °C to +125 °C
Ranges cover the whole series; individual part numbers differ.
