| Safety class | X1 / Y2 (IEC 60384-14) |
|---|---|
| Rated voltage | X1 440 VAC · Y2 300 VAC |
| Capacitance by package | 1815: 10–2,200 pF · 2522: 390–4,700 pF |
| Operating temperature | −40 °C to +125 °C |
| Approvals | UL/cUL E530201 |

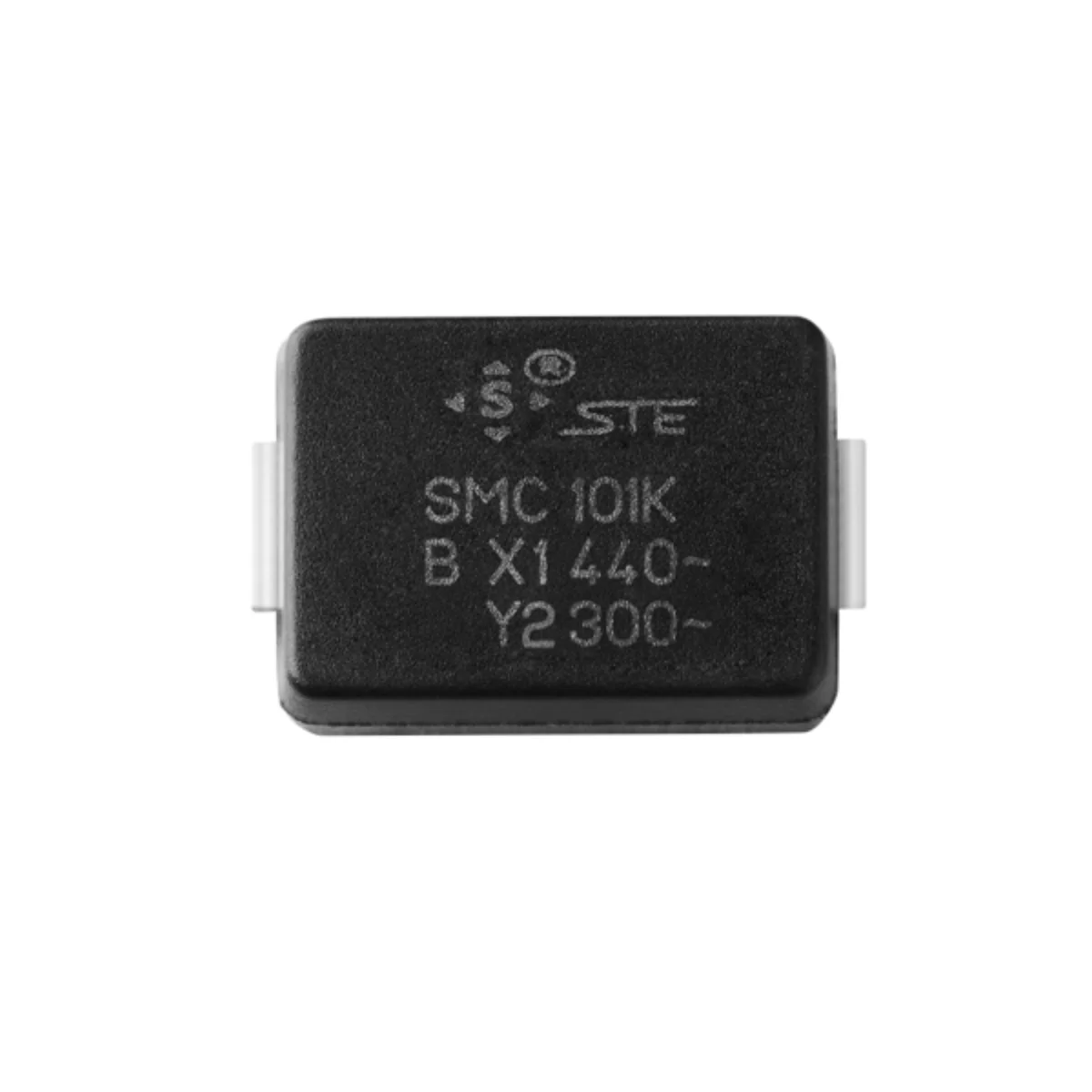

Resin-molded SMD ceramic safety capacitors, Class X1/Y2, for EMI suppression. X1 440 VAC, Y2 300 VAC, 10–4,700 pF.
Part numbers and datasheets on request. Tell us the application, your specifications and the expected volume, and an STE engineer will reply by email.
Part number:
Already have an STE part number? Search STE part numbers
Datasheets, technical documents and approval certificates for this series. English editions of documents marked “Chinese” are available on request.
Resin-molded SMD ceramic safety capacitors, Class X1/Y2 to IEC 60384-14, for AC-line filtering and coupling across basic insulation. Rated X1 440 VAC / Y2 300 VAC, 10–4,700 pF, in 1815 and 2522 SMD package formats, 2.2–2.38 mm nominal height. Operating temperature −40 °C to +125 °C.
| Safety class | X1 / Y2 (IEC 60384-14) |
|---|---|
| Rated voltage | X1 440 VAC · Y2 300 VAC |
| Capacitance range | 10–4,700 pF |
| Package formats | 1815 · 2522 |
| Operating temperature | −40 °C to +125 °C |
| Climatic category | 40/125/21 · flammability class B |
| Dielectrics | SL · Y5P · Y5U · Y5V, depending on package |
| Capacitance tolerance | K ±10% · M ±20% |
| Dissipation factor | SL ≤0.15% · Y5P/Y5U/Y5V ≤2.5% |
| Dielectric withstand | 2.6 kVAC r.m.s. · 60 s |
| Insulation resistance | >10,000 MΩ at 500 VDC, 60 ±5 s |
| Moisture sensitivity | MSL 3 |
| Reel quantity | 3,000 pcs |
| Flammability | Epoxy molding to UL 94 V-0 |
Ranges by dielectric, package and lead style within this series.
| Variant | Body dimensions | Capacitance | Dielectric | Lead / land pattern | Notes |
|---|---|---|---|---|---|
| 1815 | L 4.5 ±0.3 · W 3.9 ±0.3 · H 2.2 ±0.3 mm | 10–2,200 pF | SL · Y5P · Y5U · Y5V | a ≥4.0 · b 2.2 ±0.1 · c 3.2 ±0.2 mm | Smallest footprint; includes the low-capacitance SL range. |
| 2522 | L 6.0 ±0.1 · W 5.55 ±0.1 · H 2.38 ±0.1 mm | 390–4,700 pF | Y5P · Y5U · Y5V | a ≥5.5 · b 2.2 ±0.1 · c 3.6 ±0.2 mm | Higher-capacitance format up to 4.7 nF. |
Define the circuit position and the required insulation class before choosing capacitance or package. X1 and Y2 ratings cover different fault and impulse duties. Y2 is a basic-insulation class; do not use it where the end equipment requires Y1 reinforced insulation.
Identify line-to-line, line-to-earth or isolation-barrier use from the end-equipment standard. Confirm that X1/Y2, and Y2 basic insulation in particular, is permitted at that position.
Include nominal mains voltage, repetitive peaks, switching overshoot and abnormal conditions. The 2.6 kVAC withstand is a test condition, not a continuous rating.
1815 covers 10–2,200 pF and adds SL at low values; 2522 extends the range to 390–4,700 pF. Check the temperature characteristic of the dielectric before using nominal capacitance in EMI calculations.
Use the body and land dimensions in the variant table. Recalculate creepage and clearance on the finished PCB, including contamination, coating, conductive chassis parts and adjacent copper.
Apply the MSL 3 floor-life rule, validate the reflow profile, and verify board flex, cleaning, coating and resin compatibility on the production assembly.
UL/cUL recognition covers the SMC X1/Y2 series. Approvals of the SMD X1/Y1 series do not apply to SMC parts.
| Agency | Standard | Certificate | Scope |
|---|---|---|---|
 UL / cUL | UL / CSA 60384-14 | E530201 | SMC X1/Y2, 10–4,700 pF, tolerance K (±10%) or M (±20%). |
Each certificate covers the types and ratings listed on it.
Test conditions and limits for both packages. Endurance impulse preconditioning depends on the package: 8 kVDC for 1815, 5 kVDC for 2522. Impulse values are test conditions, not continuous ratings.
| Test | Condition | Acceptance |
|---|---|---|
| Damp heat, steady state | 40 ±2 °C · 90–95% RH · 500 ±12 h | No visible damage · ΔC ≤±15% · IR >5,000 MΩ · withstands 2.6 kVAC, 60 s |
| Damp heat with load | 40 ±2 °C · 90–95% RH · rated voltage · 500 ±12 h | No visible damage · ΔC ≤±15% · IR >5,000 MΩ · withstands 2.6 kVAC, 60 s |
| Endurance | Three impulses of 8 kVDC (1815) or 5 kVDC (2522), then 125 °C · 1.7 × UR · 1,000 h, raised to 1,000 VAC for 0.1 s every hour | No visible damage · ΔC within ±20% · IR >5,000 MΩ · withstands 2.6 kVAC, 60 s |
| Temperature cycling | −40 °C ↔ +125 °C · five cycles | No visible damage · ΔC within ±20% · IR >5,000 MΩ · withstands 2.6 kVAC, 60 s |
| Resistance to soldering heat | Solder 260 +5/−0 °C · 10 ±1 s · after preconditioning | No visible damage · ΔC within ±10% · withstands 2.6 kVAC, 60 s |
| Vibration, board bending and shear | 10–55–10 Hz · 1.5 mm · 6 h; bend test and 5 N shear test | No significant abnormality or terminal displacement; electrical drift within the specified limits |
MSL 3. Store at ≤30 °C / 60% RH and use within six months of delivery. Complete soldering within 168 h after opening the bag. If storage time or floor life is exceeded, bake at 60 °C for 168 h. Reference reflow window: 230–260 °C for 10–30 s, preheat 170 °C max.
Y2 is intended for basic or supplementary insulation under the applicable equipment standard. Do not replace a Y1 capacitor with SMC X1/Y2 because capacitance, footprint or nominal AC voltage appear to match.
Keep all steady-state and transient voltage components within the rated voltage, and the capacitor surface below +125 °C. For the applicable high-permittivity dielectrics, limit temperature rise from dielectric loss to 20 °C at 25 °C ambient.
Use the land pattern of the selected package. Do not load, tilt or move the body after soldering. Board flex, terminal misalignment and external shock can crack the ceramic element or the termination.
Validate cleaning agents, adhesives, conformal coatings and potting resins on the actual assembly. Organic solvents and mismatched curing or thermal expansion can damage the epoxy or the ceramic during temperature cycling.
Use a 50/60 Hz sinusoidal source, secure the terminals and ramp up from near zero. Do not return samples that have been hipot tested repeatedly to production stock. A damaged safety capacitor can fail short; provide fusing or another automatic protective function.
