STE launches compact, high-capacitance SMD X1/Y1 safety ceramic capacitors
STE NEWS

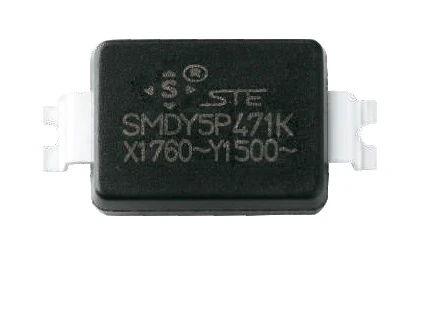

STE has launched an SMD X1/Y1 safety ceramic capacitor series with a smaller package and higher capacitance.
Applications include AC line filtering and primary-to-secondary coupling in switch-mode power supplies and converters.
STE has introduced SMD-X1Y1 safety ceramic capacitors for compact power electronics. Applications include AC line filtering and primary-to-secondary coupling in switch-mode supplies and converters.
A closer look at the 3225 option
Capacitance and dimensions vary by package. The 3225 datasheet specifies a 500 VAC Y1 rating, 10–2,200 pF capacitance and an operating range of −40 °C to +125 °C.
| Parameter | Value |
|---|---|
| Y1 rated voltage | 500 VAC |
| Capacitance | 10–2,200 pF |
| Body dimensions | 8.1 ±0.3 × 6.0 ±0.3 × 2.5 ±0.3 mm |
| Operating temperature | −40 °C to +125 °C |
Planning a compact safety-capacitor layout
Surface-mount construction supports SMT assembly. Board design still needs to account for the land pattern, terminal spacing and required safety distances. For primary-to-secondary coupling, select capacitance from the insulation, leakage-current and EMI requirements.

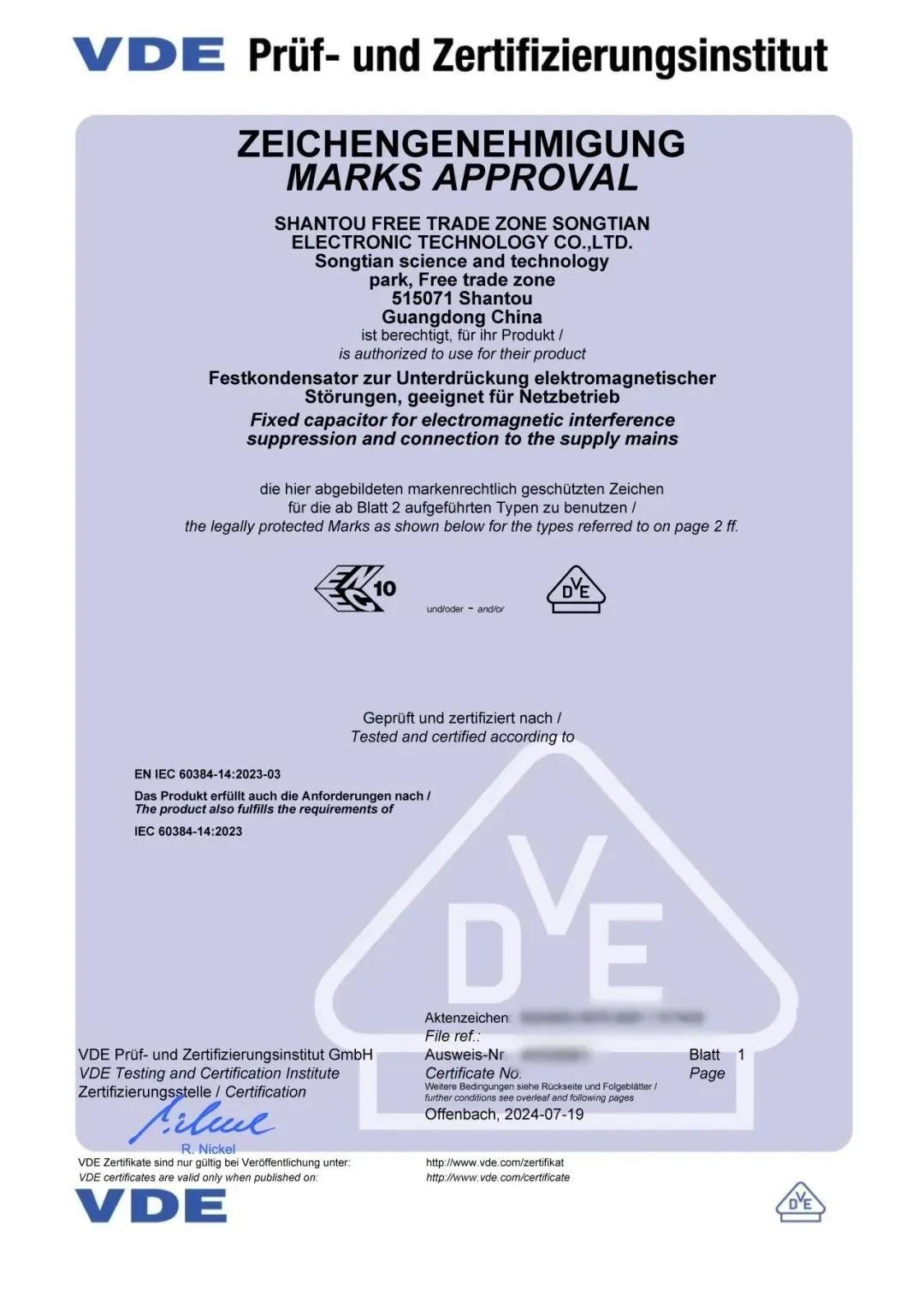

Approved models, voltages and capacitances are defined by the applicable certificate. See the 3225 datasheet and series documentation.
